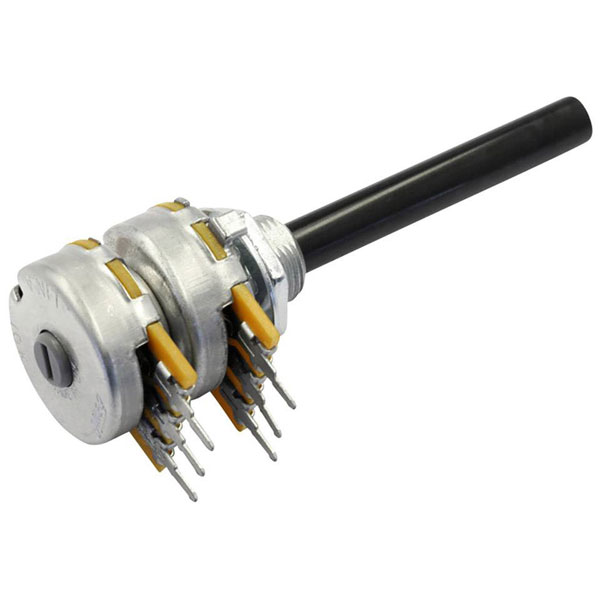

OMEG PC2G20BU 50mm rotary potentiometer 22kΩ 0.2W single turn stereo

OMEG PC2G20BU is a precision-engineered 50mm rotary potentiometer with a resistance of 22 kO, capable of handling up to 0.2 watts. This device is designed as a single-turn, stereo slide potentiometer, providing smooth and accurate control in applications where linear motion is needed to adjust electrical resistance. Its robust construction and reliable performance make it suitable for use in audio equipment, instrumentation, and industrial control systems, where accurate adjustment of voltage or signal strength is essential. The PC2G20BU's compact form factor and precision capabilities allow it to be effectively integrated into complex electronic systems, ensuring consistent and high-performance output.

Type	PC2G20BU CEBS F1 L:50 B22K
Resistance	22kO
No of Turns	1
Power Rating	0.2W
Axle Diameter	6mm
Connection	Print
Content	1
Lever Length	50mm
Max. temperature	-25°C
Maximum Temperature	-25°C
Mechanical Angle	300°
Min. temperature	70°C
Minimum Operating Temperature	70°C
Output	Stereo
Product Type	Single turn rotary pot
Resistance characteristic	logarithmic
Switching voltage (max.)	500V DC
Thread Length	8mm
Tolerance ±	20%
Torque (max.)	1.5Ncm
