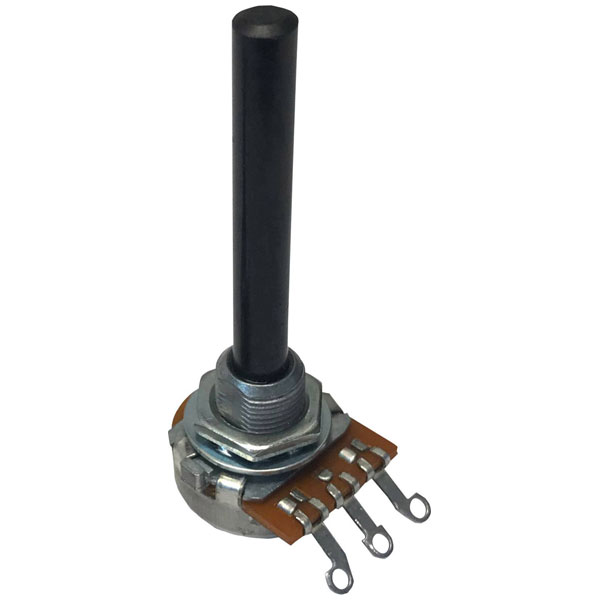

OMEG 10015 Single turn rotary potentiometer 0.4 W 10 kΩ

OMEG 10015 is a single turn rotary potentiometer with a power rating of 0.4 watts and a resistance value of 10 kilohms. Classified as a slide potentiometer, this device is designed for precise linear adjustment in various electronic applications. Its robust construction allows it to be used in both signal and power circuit configurations, typically serving roles in audio equipment, adjustable power supplies, and other devices requiring variable resistance. The OMEG 10015 rotary pot is suitable for applications where a compact form factor and reliable performance over a rotational span are required, offering engineers a dependable component for fine-tuning circuit properties. With its singular turn capabilities, it allows for straightforward control in circuit tuning and calibrations.

Type	10015
Resistance	10kO
No of Turns	1
Power Rating	0.4W
Axle Diameter	6mm
Connection	Wire
Content	1
Lever Length	20mm
Mechanical Angle	300°
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Thread Size	M10
