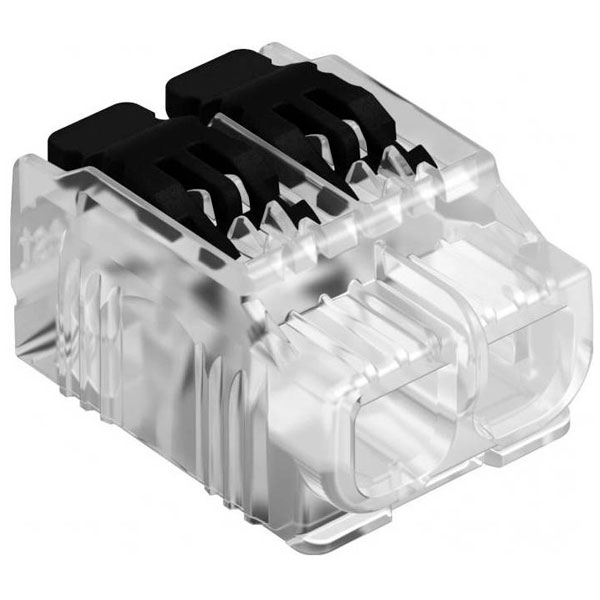

OBO Bettermann 2054422 61 HSK42 2pin flexible 0.02-4 mm² : 0.02-2.5 mm² 100pc

OBO Bettermann 2054422, also known by its alternate description 3474414, is a , technically advanced flexible conductor termination accessory designed for precise electrical applications. This component is engineered as a 2-pin terminal, compatible with conductor sizes ranging from 0.02 to 4 mm² and specifically suitable for 0.02 to 2.5 mm² when working within particular electrical systems. The HSK42 series incorporates high-quality materials to ensure optimal connectivity and reliability in both residential and industrial electrical assemblies. Typical engineering applications include the integration into circuit breaker panels, distribution boards, and other enclosures where reliable conductor connection is essential. The packaging includes 100 pieces, providing efficiency and convenience in high-demand electrical projects.

Type	Terminal Block
Number of Circuits	2
Wire Gauge	0.02–4mm²
Mounting Type	Screw
AWG	24 - 12
Colour	Transparent
Connection	Pull spring
Connection (type)	Spring-Loaded Connector
Connections	2
Connector clip features	Latch
Content	100
Cross section (flexible) (max.)	4mm²
Cross section (flexible) (min.)	0.02mm²
Cross section (inflexible) (max.)	2.5mm²
Cross section (inflexible) (min.)	0.02mm²
Current Rating (A)	32
Dim	(L x W) 19.6 mm x 14.2 mm
Dimensions	(L x W) 19.6 mm x 14.2 mm
Insulation Material	Thermoplastic
Length	19.6mm
Length (mm)	19.6mm
Material (details)	Plastic
Nominal Current	32A
Nominal Voltage	450V AC
Number of Pins	2
Number of Ways	2
Product Type	Terminal Block
Stripping length	9 - 10mm
Stripping length (max.) mm	10mm
Temperature Range	-5 - +85°C
Voltage Rating (V, V DC)	500 V
Width	14.2mm
Width (mm)	14.2
