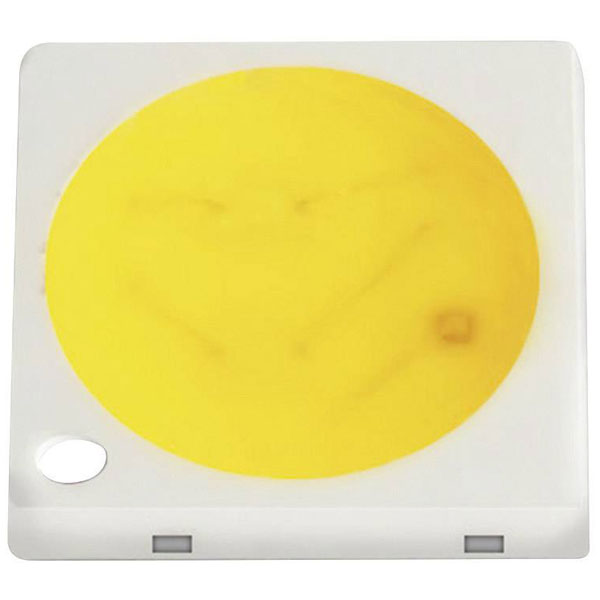

Nichia NF2W757ART-V1 SMD LED Non-standard White 36300mcd 120° 150mA 6.3V

Nichia NF2W757ART-V1 is an advanced SMD LED designed for applications requiring reliable, high-intensity illumination. This device emits non-standard white light, delivering a luminous intensity of 36,300 millicandela, and operates efficiently with a current of 150 mA at a forward voltage of 6.3 volts. Engineered with a viewing angle of 120 degrees, the LED is well-suited for a variety of lighting applications including but not limited to architectural lighting, display backlighting, and general-purpose lighting systems. This product employs semiconductor lighting technology to provide consistent single-wavelength output, making it an ideal choice for environments where precise light quality is critical. Built to meet the demanding requirements of professional engineering applications, the NF2W757ART-V1 ensures dependable performance in diverse settings.

Type	SMD LED
LED Colour	White
Viewing Angle	120°
Forward Voltage	6.3V
Forward Current	150mA
Luminosity	36300mcd
Colour Rendering Index	83Ra
Colour Temperature	5000K
Content	1
Dimensions	(L x W x H) 3 x 3 x 0.52 mm
Height	0.52mm
Length	3mm
Max. temperature	100°C
Maximum Temperature	100°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Width	3mm
