How DIN rail terminal blocks improve panel reliability and maintenance

In control panels and electrical enclosures, reliability doesn’t come from a single component - it’s the result of consistent, well-executed design choices.

DIN rail terminal blocks are one of those often-overlooked elements that quietly make a significant difference. When specified and installed correctly, they improve connection integrity, simplify maintenance and reduce costly downtime.

This article explores how and why DIN rail terminal blocks contribute to better panel performance - with real-world considerations you won’t find in basic product descriptions.

What are DIN rail terminal blocks?

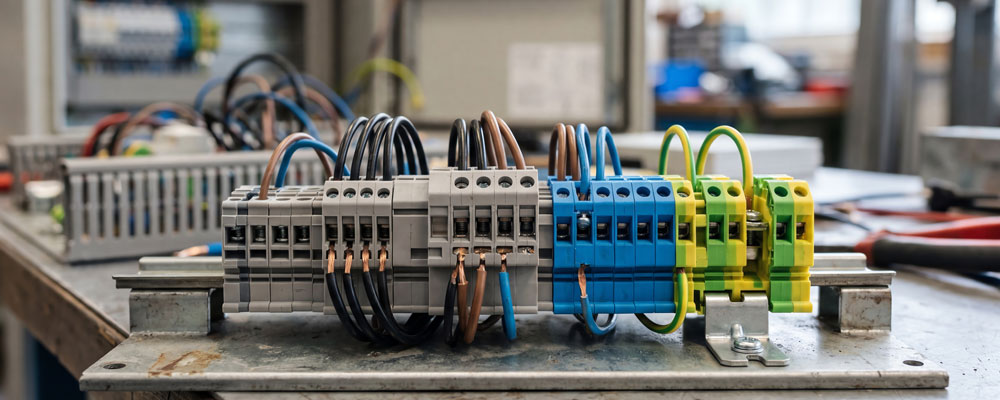

DIN rail terminal blocks are modular electrical connectors mounted onto a standardised metal rail (DIN rail). They provide a secure, organised way to connect and distribute wiring within a panel.

Instead of loose or direct wiring between components, terminal blocks create structured connection points - making systems easier to build, test and maintain.

Why reliability starts with connections

Most electrical faults don’t originate from complex components - they come from simple issues like:

• Loose connections
• Vibration-related failures
• Poor wire terminations
• Miswiring during installation or maintenance

Terminal blocks reduce these risks by introducing consistent, repeatable connection points that are designed for long-term stability.

Secure, vibration-resistant connections

In industrial environments, vibration is a constant challenge - especially in applications involving motors, conveyors or heavy machinery.

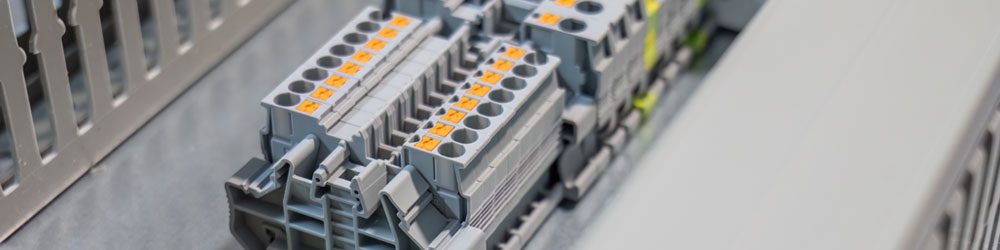

Brands such as WAGO are industry-standard for high-vibration environments due to their push-in spring connection technology, which provides a maintenance-free, gas-tight connection.

Good DIN rail terminal blocks are designed to withstand these conditions using:

• Screw clamp terminals provide strong mechanical connections
• Spring clamp (push-in) terminals maintain constant pressure over time
• High-quality contact materials reduce resistance and heat build-up

Why it matters: A loose connection can cause intermittent faults, overheating or even complete failure. Terminal blocks minimise this risk by maintaining consistent contact pressure.

Improved fault finding and troubleshooting

When something goes wrong in a panel, time is critical. Terminal blocks make troubleshooting significantly faster by:

• Providing clearly defined connection points
• Allowing easy access for testing (e.g. multimeter probes)
• Enabling logical circuit separation

Real-world benefit: Instead of tracing wires through a bundle, engineers can isolate faults at specific terminals - reducing diagnostic time from hours to minutes.

Faster installation and reduced wiring errors

Panel build time is a major cost factor, especially for larger systems. Terminal blocks streamline installation by:

• Supporting pre-labelled, structured wiring layouts
• Reducing point-to-point wiring complexity
• Allowing modular assembly

Common mistake avoided: Direct wiring between components increases the risk of miswiring - especially in complex panels. Terminal blocks introduce a clear, repeatable structure.

Simplified maintenance and modifications

Control panels rarely stay unchanged. Expansions, upgrades and repairs are inevitable. DIN rail terminal blocks make these changes easier by:

• Allowing quick disconnection and reconnection
• Supporting plug-in bridges and jumpers
• Enabling component replacement without disturbing entire circuits

Practical example: Replacing a faulty device becomes far simpler when wires terminate at clearly labelled blocks rather than being hardwired into components.

Better organisation and panel layout

A well-organised panel isn’t just about aesthetics - it directly impacts usability and reliability. Terminal blocks help by:

• Keeping wiring neat and structured
• Separating circuits (power, signal, control)
• Supporting labelling systems for clear identification

Why it matters: Good organisation reduces human error during installation and maintenance - one of the most common causes of faults.

Scalability for future expansion

Planning for future changes is a key part of good panel design. DIN rail systems are inherently modular, allowing you to:

• Add new terminal blocks without redesigning the entire layout
• Extend circuits using standard accessories
• Maintain consistency across multiple panels

Insight: Standardisation across panels reduces training requirements and speeds up maintenance across sites.

Enhanced safety and compliance

Terminal blocks also contribute to safer systems by:

• Providing insulated connection points
• Reducing exposed conductors
• Supporting compliance with electrical standards

Many terminal blocks are designed to meet international standards, helping ensure panels are safe and regulation-ready.

Choosing the right terminal block

Not all terminal blocks are equal. Selection should be based on application needs. Key factors to consider include current and voltage ratings, wire size compatibility, connection type (screw vs push-in), environmental conditions and required accessories.

Quick guidance: terminal block selection

Requirement	Recommended type
High vibration environment	Spring clamp (push-in)
High current applications	Heavy-duty screw clamp
Fast installation	Push-in terminals
Frequent maintenance	Modular terminal blocks

Common mistakes to avoid

Even with terminal blocks, poor implementation can reduce their benefits:

• Overcrowding terminals beyond rated capacity
• Incorrect torque on screw connections
• Skipping proper labelling
• Ignoring environmental factors

Addressing these early prevents reliability issues later.

Final thoughts: small component, big impact

DIN rail terminal blocks might seem like a minor part of a panel, but their impact is significant. They improve connection reliability, reduce installation errors, speed up maintenance and fault finding and support scalable, future-proof designs.

In short, they turn complex wiring into structured, manageable systems - which is exactly what reliable panels depend on.
