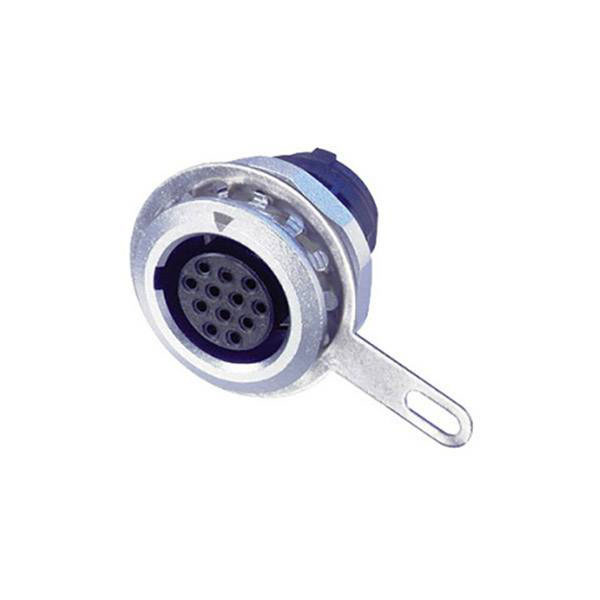

Neutrik MRF12 miniCON Socket Connector 12 Pins 1pc

Neutrik
Order Code:

05-5712

Brand: Neutrik MPN: MRF12 EAN-13: 7613187002038
Qty Unit Price (Ex VAT)
1+ £15.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
46 in stock, despatched in 4 working days

The Neutrik MRF12 is a 12-pin bullet connector socket from the miniCON series, ideal for secure and reliable connections. Manufactured by Neutrik, this connector is built-in and suitable for applications requiring compact and robust connectivity solutions. Typical uses include audio, communication, and broadcasting equipment.
Connector Type miniCON
Mounting Direction Socket
Mounting Type Panel
No. of Contacts 12
(Ø) 14.10mm
AWG 20
Case Material Velour chrome
Colour Silver
Connection Soldering
Connector Body Material Metal
Cross-section range 0.50 mm² (max)
max. cross section 0.50mm²
Max. temperature +105°C
Min. temperature -65°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 50V AC
Number of Pins 12
Plug / Socket Socket
Seal Push-Pull
Series miniCON
Termination Solder
Total no. of pins 12
