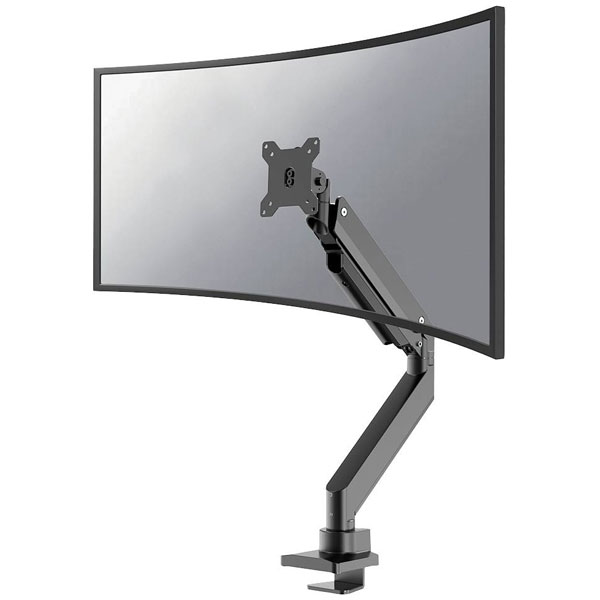

Neomounts NM-D775BLACKPLUS is the manufacturer's part number for a versatile monitor desk mount designed to accommodate display sizes ranging from 25.4 cm (10 inches) to 124.5 cm (49 inches). This robust mount, categorised under displays, mounts, and docking stations, is engineered to offer a high degree of flexibility with its swivelling and tiltable capabilities, allowing for optimal ergonomic placement of monitors in dynamic environments. The mount's black finish provides a professional appearance suitable for office, industrial, and home settings. It serves a wide range of engineering applications, such as workstations requiring frequent positional adjustments for collaborative workspaces or control room configurations, where adaptability and durability are critical.
| Type |
Monitor desk mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
180° |
| Cable management |
Yes |
| Colour |
Black |
| Country of origin |
China |
| Depth |
630mm |
| Depth adjustment range |
0 - 630 mm |
| Desk thickness (max) |
4.5 cm |
| Desk thickness (min) |
1 cm |
| Harmonized System (HS) code |
7326909890 |
| Height |
600mm |
| Height adjustment |
Yes |
| Height adjustment range |
270 - 600 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Steel |
| Master (outer) case gross weight |
5.2 kg |
| Master (outer) case height |
575mm |
| Master (outer) case length |
265mm |
| Master (outer) case net weight |
4.6 kg |
| Master (outer) case width |
500mm |
| Max. load Capacity |
18kg |
| Maximum screen size |
124.5 cm (49) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
18 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
14 kg |
| Maximum weight capacity (per display) |
18 kg |
| Minimum screen size |
25.4 cm (10) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Package depth |
123mm |
| Package height |
555mm |
| Package net weight |
5.2 kg |
| Package weight |
5.2 kg |
| Package width |
240mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
72 pc(s) |
| Rack size |
483 mm (19") |
| Rotating |
Yes |
| Rotation |
180° |
| Suitable For |
25,4 cm (10") - 124,5 cm (49") |
| Swivel angle |
360° |
| Swivel angle range |
0 - 360° |
| Swivel Range (left) |
180° |
| Swivel Range (right) |
180° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
45° |
| Tilt Range (top) |
45° |
| Weight |
4.960 |
