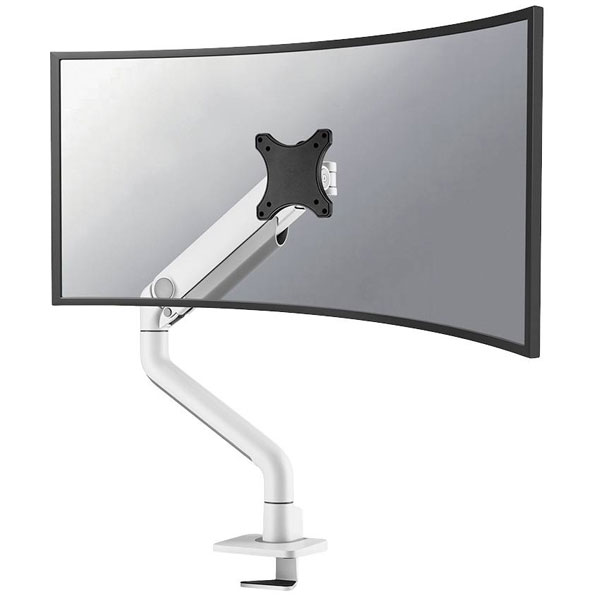

Neomounts DS70S-950WH1 is a versatile monitor desk mount engineered for flexible workstation setups capable of supporting a single display between 43.2 cm (17 inches) and 124.5 cm (49 inches). This white, height-adjustable unit offers both tiltable and swivelling options, allowing users to position their monitors with precision to suit ergonomic requirements and enhance viewing comfort. Designed within the displays, mounts, and docking stations category, this monitor desk mount is ideal for dynamic office environments, control rooms, and other professional settings requiring adaptable screen arrangements. By accommodating a wide range of monitor sizes and offering detailed position adjustments, the Neomounts DS70S-950WH1 enables efficient use of desk space and supports optimal workflow organisation, enhancing productivity for engineers and technical professionals.
| Suitable For |
43,2 cm (17") - 124,5 cm (49") |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Clamp mount desk thickness (max) |
5cm |
| Colour |
White |
| Country of origin |
China |
| Depth |
656mm |
| Depth adjustment range |
88 - 625mm |
| Desk thickness (max) |
5.5cm |
| Desk thickness (min) |
1cm |
| Dimensions |
(W x H x D) 135 x 579 x 656 mm |
| Distance to the wall (max) |
65.6cm |
| Distance to the wall (min) |
11.9cm |
| Easy to install |
Yes |
| Grommet mount desk thickness (max) |
5.5cm |
| Harmonized System (HS) code |
7616991099 |
| Height |
579mm |
| Height adjustment |
Yes |
| Height adjustment range |
200 - 520mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Aluminium |
| Master (outer) case gross weight |
18.1kg |
| Master (outer) case height |
490mm |
| Master (outer) case length |
290mm |
| Master (outer) case net weight |
15kg |
| Master (outer) case width |
355mm |
| Max. load Capacity |
18kg |
| Maximum screen size |
124.5 cm (49) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
18kg |
| Maximum weight capacity (per curved/ultra-wide display) |
15kg |
| Maximum weight capacity (per display) |
18kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of arms |
1 |
| Number of displays supported |
1 |
| Package depth |
122mm |
| Package height |
423mm |
| Package net weight |
4.3kg |
| Package Type |
Box |
| Package weight |
4.3kg |
| Package width |
333mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
White |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
80 pc(s) |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-90 - 90° |
| Tilt Range (bottom) |
-90° |
| Tilt Range (top) |
90° |
| Type |
Monitor desk mount |
| Warranty period |
10 year(s) |
| Weight |
4.3 |
| Width |
135mm |
| Width adjustment |
107.4cm |
| Width adjustment range |
0 - 1074mm |
