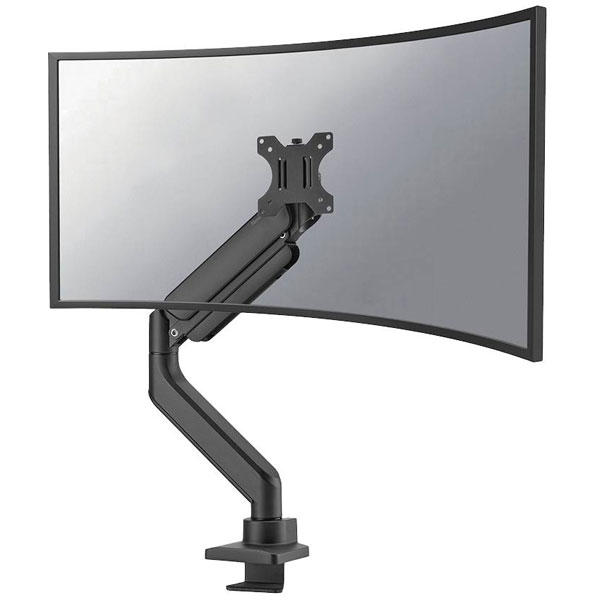

Neomounts DS70PLUS-450BL1 is a versatile monitor desk mount engineered to accommodate displays ranging from 43.2 cm (17 inches) to 124.5 cm (49 inches). It features a robust design in a sleek black finish, offering both tilt and swivel functionalities to ensure ergonomic viewing positions. This mount is highly adjustable, providing users with the ability to customise the monitor's height to suit individual needs. Its design makes it ideal for use in professional settings such as offices, control rooms, and engineering environments, where precise monitor positioning is crucial for tasks requiring detailed visual analysis or multi-monitor setups.
| Type |
Monitor desk mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
Black |
| Country of origin |
China |
| Depth |
568mm |
| Depth adjustment range |
54 - 511 mm |
| Desk thickness (max) |
4.5 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 120 x 653 x 568 mm |
| Distance to the wall (max) |
56.8 cm |
| Distance to the wall (min) |
10.8 cm |
| Harmonized System (HS) code |
7326909890 |
| Height |
653mm |
| Height adjustment |
Yes |
| Height adjustment range |
261 - 555 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Steel |
| Master (outer) case gross weight |
20.5 kg |
| Master (outer) case height |
580mm |
| Master (outer) case length |
275mm |
| Master (outer) case net weight |
16 kg |
| Master (outer) case width |
460mm |
| Max. load Capacity |
18kg |
| Maximum screen size |
124.5 cm (49) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
18 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
14 kg |
| Maximum weight capacity (per display) |
18 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Package depth |
127mm |
| Package height |
445mm |
| Package net weight |
5.1 kg |
| Package type |
Box |
| Package weight |
5.1 kg |
| Package width |
280mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
64 pc(s) |
| Quantity per pack |
1 pc(s) |
| Rotating |
Yes |
| Suitable For |
43,2 cm (17") - 124,5 cm (49") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
-45° |
| Tilt Range (top) |
45° |
| Weight |
4.309 |
| Width |
120mm |
| Width adjustment |
92cm |
| Width adjustment range |
0 - 920 mm |
