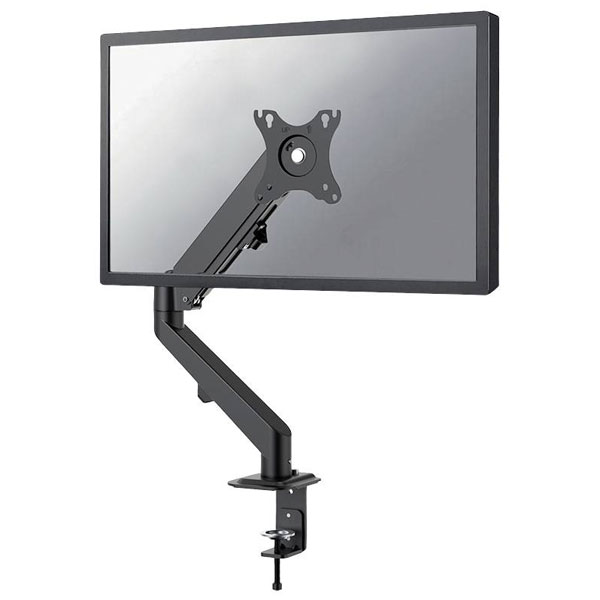

Neomounts DS70-700BL1 is a robust monitor desk mount designed to accommodate displays ranging from 17 inches to 27 inches. Engineered for flexibility, this mount features swivelling and tilting functionalities alongside height adjustment, allowing for precise positioning to enhance ergonomics in various workstation configurations. Constructed in a sleek black finish, it supports a seamless integration within professional environments, such as office settings, design studios, or control centres, where display adjustability is paramount for operational efficiency. The DS70-700BL1's versatile mount ensures optimal viewing angles, thereby reducing potential strain associated with prolonged screen use. Suitable for engineers, this desk mount facilitates streamlined multitasking by enabling the ergonomic arrangement of monitors for complex tasks.
| Type |
Monitor desk mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
Black |
| Country of origin |
China |
| Depth |
54.2cm |
| Depth adjustment range |
0 - 480 mm |
| Desk thickness (max) |
8 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 11.7 x 56.6 x 54.2 cm |
| Harmonized System (HS) code |
7326909890 |
| Height |
56.6cm |
| Height adjustment |
Yes |
| Height adjustment range |
152 - 402 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Steel |
| Master (outer) case gross weight |
2.5 kg |
| Master (outer) case height |
90mm |
| Master (outer) case length |
270mm |
| Master (outer) case net weight |
2.1 kg |
| Master (outer) case width |
405mm |
| Max. distance to floor/ceiling |
40.2cm |
| Max. load Capacity |
7kg |
| Maximum screen size |
68.6 cm (27) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
7 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
7 kg |
| Maximum weight capacity (per display) |
7 kg |
| Min. distance to floor/ceiling |
15.2cm |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
2 kg |
| Mounting |
Clamp |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Orientation |
Landscape/Portrait |
| Package depth |
270mm |
| Package height |
90mm |
| Package net weight |
2.5 kg |
| Package weight |
2.5 kg |
| Package width |
405mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
1 pc(s) |
| Products per pallet (EU) |
135 pc(s) |
| Quantity per pack |
1 pc(s) |
| Rack size |
483 mm (19") |
| Rotating |
Yes |
| Rotation |
180° |
| Suitable For |
43,2 cm (17") - 68,6 cm (27") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 90° |
| Tilt Range (bottom) |
45° |
| Tilt Range (top) |
90° |
| Weight |
2.472 |
| Width |
11.7cm |
