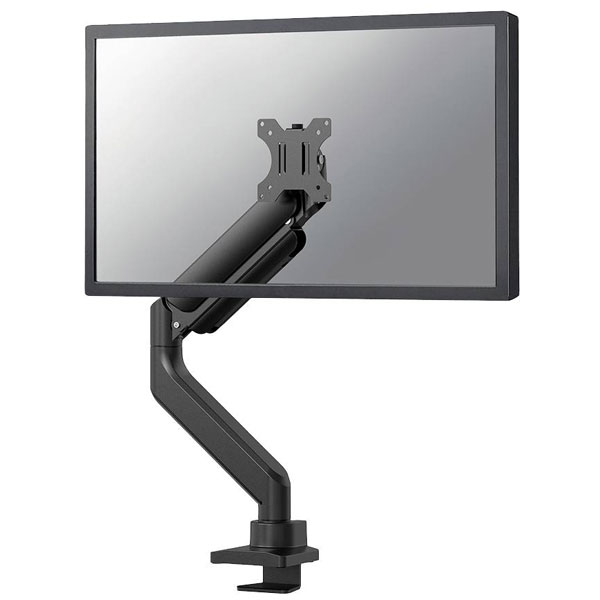

Neomounts DS70-450BL1 is a monitor desk mount designed for displays ranging from 17 to 42 inches, offering versatile adjustment features ideal for professional and engineering environments. This black mount allows for rotation, tilt, and swivel, providing optimal viewing angles and ergonomic positioning for monitors within the specified size range. It supports displays with dimensions from 43.2 cm to 106.7 cm, accommodating a wide variety of screen types. This product is particularly effective in applications requiring precise screen placement, such as in design studios, corporate workstations, or any setting where adjustable visual displays are necessary for productivity and comfort. It is engineered to enhance desktop space while ensuring stability and ease of use.
| Type |
Monitor desk mount |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
Black |
| Country of origin |
China |
| Depth |
574mm |
| Depth adjustment range |
54 - 511 mm |
| Desk thickness (max) |
4.5 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 115 x 643 x 574 mm |
| Distance to the wall (max) |
56.8 cm |
| Distance to the wall (min) |
10.8 cm |
| Doesnt contain |
Plastic |
| Harmonized System (HS) code |
7326909890 |
| Height |
643mm |
| Height adjustment |
Yes |
| Height adjustment range |
261 - 555 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Steel |
| Master (outer) case gross weight |
20.5 kg |
| Master (outer) case height |
580mm |
| Master (outer) case length |
275mm |
| Master (outer) case net weight |
18.4 kg |
| Master (outer) case width |
460mm |
| Max. load Capacity |
15kg |
| Maximum screen size |
106.7 cm (42) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
15 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
11 kg |
| Maximum weight capacity (per display) |
15 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting kit |
Yes |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Package depth |
127mm |
| Package height |
445mm |
| Package net weight |
5.4 kg |
| Package weight |
5.1 kg |
| Package width |
280mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
No |
| Product colour |
Black |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
64 pc(s) |
| Rack size |
483 mm (19") |
| Rotating |
Yes |
| Rotation |
180° |
| Suitable For |
43,2 cm (17") - 106,7 cm (42") |
| Swivel angle |
180° |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
35° |
| Tilt Range (top) |
45° |
| Warranty period |
5 year(s) |
| Weight |
4.864 |
| Width |
115mm |
| Width adjustment |
92cm |
| Width adjustment range |
0 - 920 mm |
