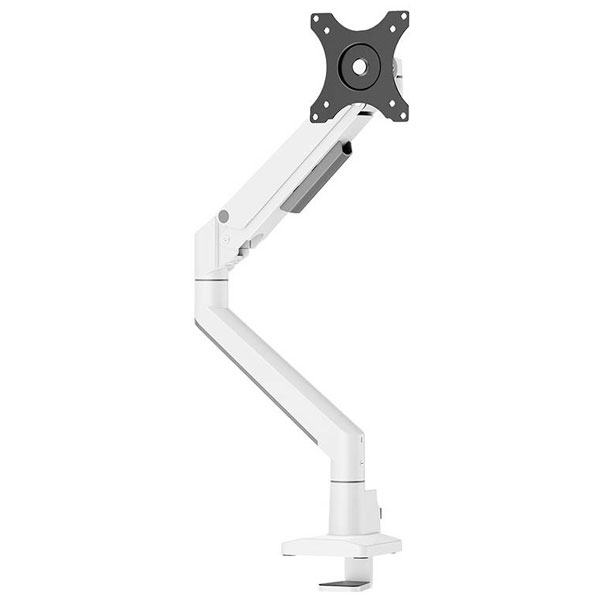

Neomounts DS70-250WH1 is a robust monitor desk mount designed to accommodate displays ranging from 43.2 cm (17 inches) to 88.9 cm (35 inches), providing an adaptable solution in white for a wide array of work environments. This mount offers tilt and swivel functionalities, allowing precise positional adjustments to optimise viewer comfort and ergonomic efficiency. Additionally, it is height-adjustable, enabling further customisation to suit various desk setups and seating arrangements. Commonly utilised in engineering offices, design studios, and technical workstations, this mount supports dynamic and flexible use of monitor displays, contributing to efficient space management and workflow enhancement. Its versatile and reliable performance makes it an essential component in settings that demand frequent adjustments for diverse viewing requirements.
| Type |
Monitor desk mount |
| Accepts padlock |
No |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
White |
| Country of origin |
China |
| Depth |
58mm |
| Depth adjustment range |
70 - 525 mm |
| Desk thickness (max) |
5 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 114 x 552 x 58 mm |
| Distance to the wall (max) |
58 cm |
| Distance to the wall (min) |
12.5 cm |
| Distance to wall (max.) |
580mm |
| Distance to wall (min.) |
125mm |
| Harmonized System (HS) code |
7616991099 |
| Height |
552mm |
| Height adjustment |
Yes |
| Height adjustment range |
215 - 495 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Aluminium |
| Master (outer) case gross weight |
18.3 kg |
| Master (outer) case height |
445mm |
| Master (outer) case length |
345mm |
| Master (outer) case net weight |
13.8 kg |
| Master (outer) case width |
410mm |
| Material (details) |
Aluminium |
| Max. load Capacity |
9kg |
| Maximum screen size |
88.9 cm (35) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
9 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
8 kg |
| Maximum weight capacity (per display) |
9 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Package depth |
108mm |
| Package height |
428mm |
| Package weight |
2.9 kg |
| Package width |
198mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
Yes |
| Product colour |
White |
| Products per master (outer) case |
6 pc(s) |
| Products per pallet (EU) |
84 pc(s) |
| Rotating |
Yes |
| Rotation |
360° |
| Suitable For |
43,2 cm (17") - 88,9 cm (35") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
45° |
| Tilt Range (top) |
45° |
| Warranty period |
5 year(s) |
| Weight |
2.691 |
| Width |
114mm |
| Width adjustment |
91cm |
| Width adjustment range |
0 - 910 mm |
