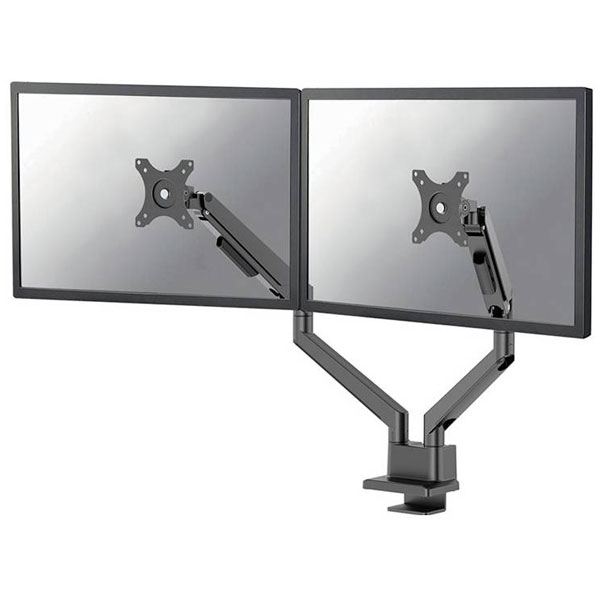

Neomounts DS70-250BL2 is a high-precision monitor desk mount designed to enhance ergonomics in engineering and technical environments by offering versatile adjustment capabilities. This robust desk mount accommodates displays ranging from 43.2 cm (17 inches) to 81.3 cm (32 inches) and is finished in a sleek black colour. Engineered for flexibility, the mount is height-adjustable, tiltable, and swivelling, allowing users to configure their monitors for optimal viewing angles and ergonomic efficiency. Its design is particularly suited for applications requiring multiple monitor configurations, such as CAD workstations, control centres, and other technical setups where user comfort and display adjustability are critical. The DS70-250BL2 ensures a stable and durable solution for mounting displays, contributing to increased productivity and reduced physical strain in demanding environments.
| Type |
Monitor desk mount |
| Accepts padlock |
No |
| Add-on displays |
2 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Colour |
Black |
| Country of origin |
China |
| Depth |
580mm |
| Depth adjustment range |
70 - 525 mm |
| Desk thickness (max) |
5 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 114 x 552 x 580 mm |
| Distance to the wall (max) |
40.4 cm |
| Distance to the wall (min) |
12 cm |
| Distance to wall (max.) |
404mm |
| Distance to wall (min.) |
120mm |
| Harmonized System (HS) code |
7616991099 |
| Height |
552mm |
| Height adjustment |
Yes |
| Height adjustment range |
215 - 495 mm |
| Height adjustment type |
Gas spring |
| Housing Material |
Aluminium |
| Master (outer) case gross weight |
20.7 kg |
| Master (outer) case height |
445mm |
| Master (outer) case length |
310mm |
| Master (outer) case net weight |
17.4 kg |
| Master (outer) case width |
405mm |
| Material (details) |
Aluminium |
| Max. load Capacity |
18kg |
| Maximum screen size |
81.3 cm (32) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
9 kg |
| Maximum weight capacity (per curved/ultra-wide display) |
8 kg |
| Maximum weight capacity (per display) |
9 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Minimum weight |
1 kg |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
2 |
| Orientation |
Landscape/Portrait |
| Package depth |
147mm |
| Package height |
430mm |
| Package weight |
4.9 kg |
| Package width |
192mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pivot angle |
-180 - 180° |
| Pneumatic technology |
Yes |
| Product colour |
Black |
| Products per master (outer) case |
4 pc(s) |
| Products per pallet (EU) |
80 pc(s) |
| Rotating |
Yes |
| Rotation |
360° |
| Suitable For |
43,2 cm (17") - 81,3 cm (32") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt Range (bottom) |
45° |
| Tilt Range (top) |
45° |
| Warranty period |
5 year(s) |
| Weight |
4.785 |
| Width |
114mm |
| Width adjustment |
98.4cm |
| Width adjustment range |
0 - 984 mm |
