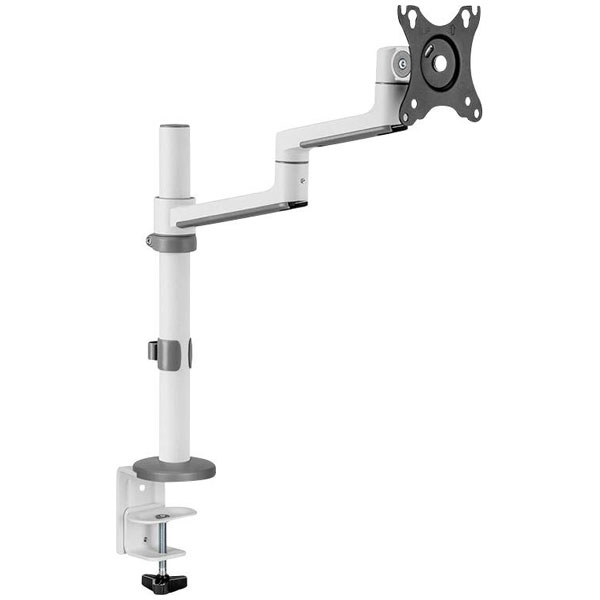

Neomounts' DS60-425WH1 is a meticulously engineered monitor desk mount designed to support displays ranging from 43.2 cm (17 inches) to 68.6 cm (27 inches) in size. Finished in a sleek white, this mount is height-adjustable, which allows users to customise the viewing elevation to suit specific ergonomic requirements. Additionally, the DS60-425WH1 includes tiltable and swivelling capabilities, providing comprehensive movement options to achieve optimal display orientation. This monitor desk mount is ideal for engineering workstations where adjusting the monitor position is critical for tasks involving precise graphical work or data analysis, ensuring that displays can be perfectly aligned for maximum viewing comfort and efficiency. Crafted for stability and flexibility, the DS60-425WH1 complements technical environments, enhancing productivity and ergonomic design.
| Type |
Monitor desk mount |
| Accepts padlock |
No |
| Add-on displays |
1 |
| Adjustable depth |
Yes |
| Angle of rotation |
360° |
| Cable management |
Yes |
| Clamp included |
Yes |
| Clamp mount desk thickness (max) |
8 cm |
| Colour |
White |
| Country of origin |
China |
| Depth |
459mm |
| Depth adjustment range |
66 - 398 mm |
| Desk thickness (max) |
8 cm |
| Desk thickness (min) |
1 cm |
| Dimensions |
(W x H x D) 453 x 611 x 459 mm |
| Distance to the wall (max) |
45.9 cm |
| Distance to the wall (min) |
12.8 cm |
| Distance to wall (max.) |
459mm |
| Distance to wall (min.) |
128mm |
| Feet |
Yes |
| Feet colour |
Black |
| Grommet mount desk thickness (max) |
4 cm |
| Harmonized System (HS) code |
7326909890 |
| Height |
611mm |
| Height adjustment |
Yes |
| Height adjustment range |
275 - 555 mm |
| Height adjustment type |
Manual |
| Housing Material |
Steel |
| Master (outer) case gross weight |
18.2 kg |
| Master (outer) case height |
455mm |
| Master (outer) case length |
330mm |
| Master (outer) case net weight |
15.2 kg |
| Master (outer) case width |
300mm |
| Material (details) |
Steel |
| Max. load Capacity |
8kg |
| Maximum screen size |
68.6 cm (27) |
| Maximum VESA mount |
100 x 100 mm |
| Maximum weight capacity |
8 kg |
| Maximum weight capacity (per display) |
8 kg |
| Minimum screen size |
43.2 cm (17) |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Grommet |
| Mounting Type |
Desk |
| Number of displays supported |
1 |
| Orientation |
Landscape/Portrait |
| Package depth |
103mm |
| Package height |
440mm |
| Package net weight |
3 kg |
| Package weight |
3 kg |
| Package width |
140mm |
| Panel mounting interface |
100 x 100,75 x 75 mm |
| Pneumatic technology |
No |
| Product colour |
White |
| Products per master (outer) case |
6 pc(s) |
| Products per pallet (EU) |
120 pc(s) |
| Quantity per pack |
1 pc(s) |
| Rotation |
360° |
| Suitable For |
43,2 cm (17") - 68,6 cm (27") |
| Swivel angle range |
-90 - 90° |
| Swivel Range (left) |
90° |
| Swivel Range (right) |
90° |
| Swivelling |
Yes |
| Tilt angle range |
-30 - 90° |
| Tilt Range (bottom) |
30° |
| Tilt Range (top) |
90° |
| VESA mount included |
Yes |
| Weight |
2.960 |
| Width |
453mm |
| Width adjustment |
33.2cm |
| Width adjustment range |
0 - 332 mm |
