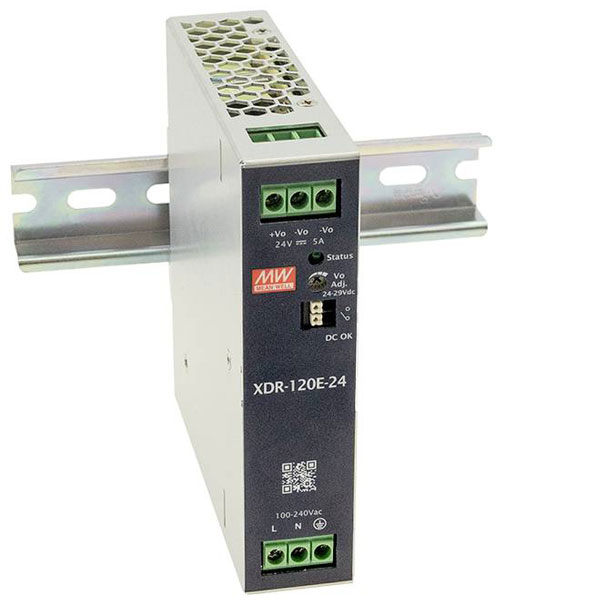

Mean Well XDR-120E-24 is a robust and efficient power supply unit designed for industrial applications, offering a stable 24V output with a current rating of 5A. This versatile unit combines the flexibility of both open-frame and DIN rail mounting, allowing for easy installation in various industrial environments. The XDR-120E-24 is ideal for applications requiring dependable power delivery, such as factory automation, robotics, and other demanding settings where reliable performance is critical. With a focus on durability and efficiency, this power supply unit is engineered to meet industry standards, ensuring it can withstand the rigours of industrial use while maintaining optimal operational efficiency.
| Type |
Rail mounted PSU (DIN) |
| Nominal value output current 1 |
5A |
| Number of Outputs |
1 |
| Power Rating |
120W |
| Content |
1 |
| Depth |
116mm |
| Dimensions (L x W x H) |
116 x 30 x 125.2mm |
| Efficiency |
91% |
| Height |
125.2mm |
| IP Rating |
Protection class I |
| Max. output current 1 |
5A |
| Max. temperature |
-40°C |
| Maximum input voltage |
264V |
| Maximum Operating Temperature |
+70°C |
| Maximum Temperature |
-40°C |
| Min. temperature |
+70°C |
| Minimum Input Voltage |
85V |
| Minimum Operating Temperature |
+70°C |
| Nominal value output current 2 |
5A |
| Nominal value output current 3 |
5A |
| Nominal value output voltage 1 |
24V |
| Operating temperature (min.) |
-40°C |
| Output current (max.) - rounded |
5A |
| Output voltage (max.) |
24V |
| Power |
120W |
| Product Type |
Rail mounted PSU (DIN) |
| Type of electric connection |
Screw terminal |
| Width |
30mm |
