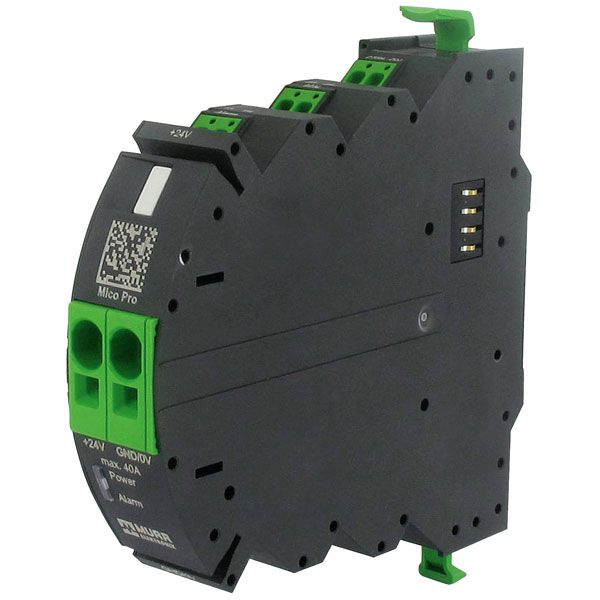

Murrelektronik 9000-41190-0000001 Feeder Module 9-30V DC 1pc

The Murrelektronik feeder module 9000-41190-0000001 is a monitoring relay designed to operate with a DC voltage range of 9 to 30 V. It ensures reliable monitoring and protection of electrical circuits. Typical applications include use in automation and control systems where consistent voltage regulation is required.

Type	Feeder module
AWG (min.)	20
AWG max.	4
Connection	Spring-loaded terminal
Cross section (flexible) (max.)	16mm²
Cross section (flexible) (min.)	0.75mm²
Cross section (inflexible) (max.)	16mm²
Cross section (inflexible) (min.)	0.75mm²
Depth	114mm
Dim	(W x H x D) 24 x 130 x 114 mm
Height	130mm
IP Rating	IP20
Max. operating voltage	30V DC
Maximum Temperature	+55°C
Min. operating voltage	9V DC
Min. temperature	-25°C
Operating Voltage	9 - 30 V DC
Width	24mm
