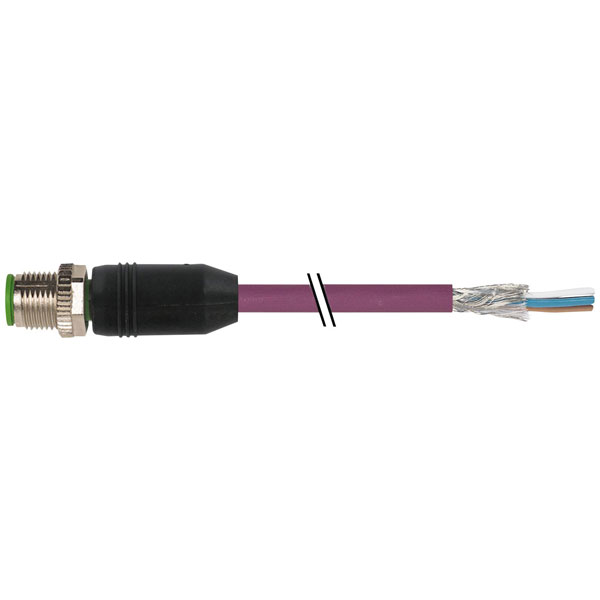

Murrelektronik 7000-13105-8030200 M12 Sensor/Actuator Connector 5-Pin 2m

The Murrelektronik 7000-13105-8030200 is a sensor/actuator connector with a straight M12 x 1 plug and a 2.00 m cable. It features 5 pins, making it suitable for complex sensor arrangements and actuator systems. Common applications include automation, robotics, and machinery installations where reliable electrical connectivity is essential.

Connector 1	M12
Connector 2	Open cable ends
Colour	Violet
Length	2m
Type	Sensor/actuator connector
Cable Diameter	6.9mm
Coding	A
Cross-section (sensor/actuator wiring)	0.25mm²
Diameter	6.9mm
IP Rating	IP65, IP66K, IP67
Material	PUR
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Current	4A
Nominal Voltage	300V
Thread Type	M12 x 1
