Murrelektronik 6686347 Transformer 230V/400V 63VA Rail-mounted

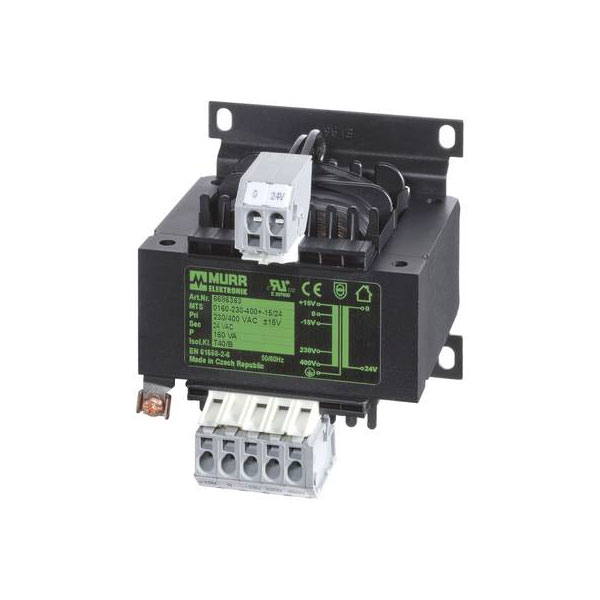

Image Representative of Range

Murrelektronik 6686347 Transformer 230V/400V 63VA Rail-mounted

Murr Elektronik
Order Code:

05-4964

Brand: Murr Elektronik MPN: 6686347 EAN-13: 4048879066068
Qty Unit Price (Ex VAT)
1+ £38.86
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

Murrelektronik's 6686347 control transformer is an isolation transformer that operates at 1 x 230 V/400 V AC with a power rating of 63 VA. It is designed for applications requiring reliable voltage transformation in automation and safety systems. This compact transformer measures 78x79x93mm and is ideal for use in varied industrial settings.
Type Control transformer
Connection Spring-loaded terminal
Dim (L x W x H) 93 x 78 x 79 mm
Frequency 50 - 60Hz
Height 79mm
Input voltage 230/400V AC
Input voltage (number x voltage) 1 x 230 V, 400 V
Insulation class T 40/B
Length 93mm
Max. ambient temperature +40°C
Min. ambient temperature -20°C
Misc Attribute MTS 0063-230-400/230
Mounting Type L-piece
No. of inputs 1
No. of outputs 1
Output voltage 230V AC
Output voltage (number x voltage) 1 x 230 V AC
Power 63VA
Primary Voltage 230/400V AC
Protection class IP20
Standards Complies with EN 61558 · Contact protection as per EN 60529
Width 78mm
