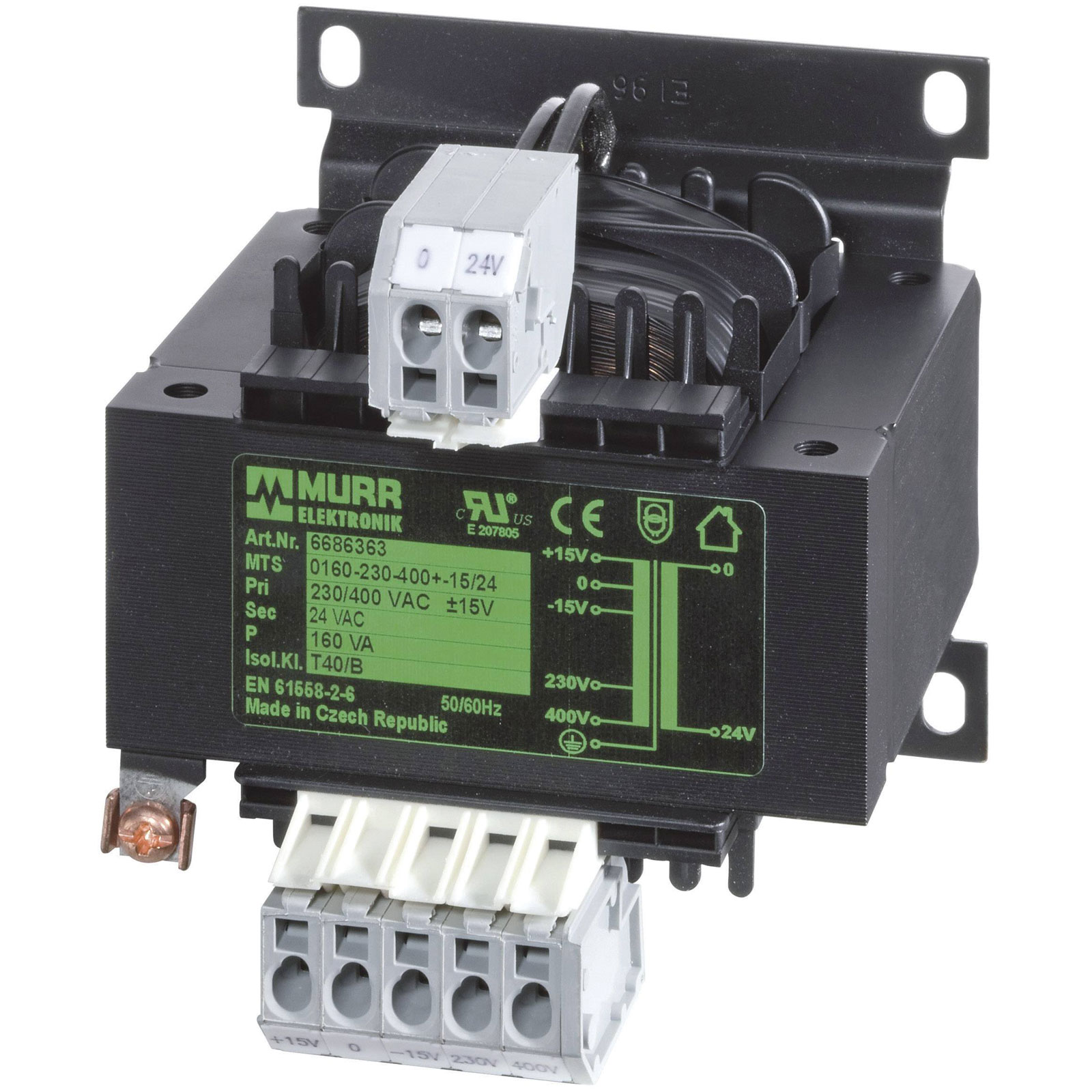

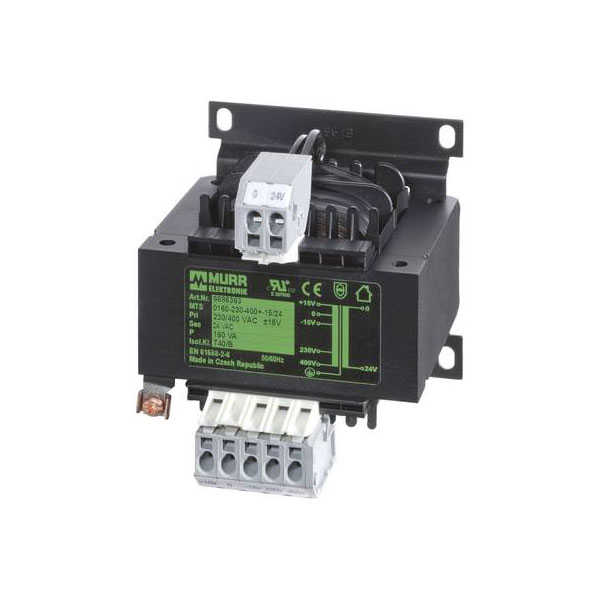

Murrelektronik 6686343 Safety Transformer 1x230V/400V 24VAC 160VA

Image Representative of Range

Murrelektronik 6686343 Safety Transformer 1x230V/400V 24VAC 160VA

Murr Elektronik
Standard range
Order Code:

05-4961

Brand: Murr Elektronik MPN: 6686343
Qty Unit Price (Ex VAT)
1+ £45.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Murrelektronik safety transformer 6686343 converts 230 V input to a single 24 V AC output with a power rating of 160 VA. It is used in automation and power supply applications requiring reliable voltage transformation. Its compact design measures 96x101x106mm, suitable for various installations.
Type Safety transformer
Connection Spring-loaded terminal
Dim (L x W x H) 106 x 96 x 101 mm
Frequency 50 - 60Hz
Height 101mm
Input Voltage 230/400V AC
Input voltage (number x voltage) 1 x 230 V, 400 V
Insulation class T 40/B
Length 106mm
Max. ambient temperature +40°C
Min. ambient temperature -20°C
Misc Attribute MTS 0160-230-400/24
No. of inputs 1
No. of outputs 1
Output voltage 24V AC
Output voltage (number x voltage) 1 x 24 V AC
Power 160VA
Primary Voltage 230/400V AC
Protection class IP20
Standards Complies with EN 61558 · Contact protection as per EN 60529
Width 96mm
