Murrelektronik 6686340 Safety Transformer 1x230V/400V 24V AC 40VA

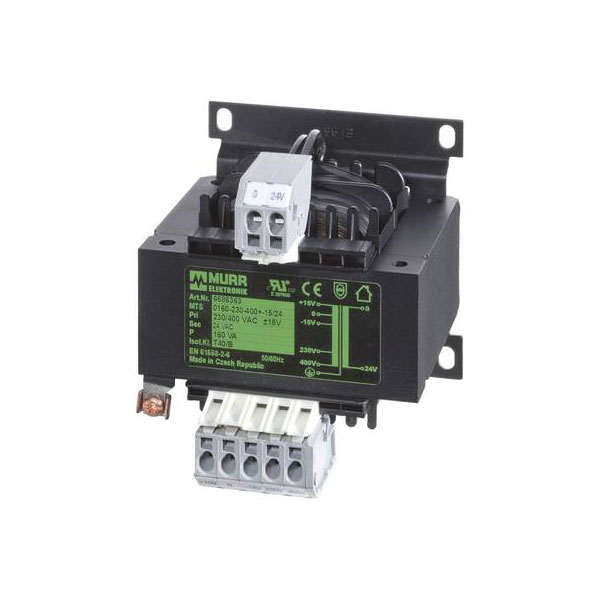

Image Representative of Range

Murrelektronik 6686340 Safety Transformer 1x230V/400V 24V AC 40VA

Murr Elektronik
Standard range
Order Code:

05-4958

Brand: Murr Elektronik MPN: 6686340
Qty Unit Price (Ex VAT)
1+ £32.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

The Murrelektronik safety transformer 6686340 delivers a safe 24 V AC output from a 230 V or 400 V input. It is compact in size with dimensions of 78x79x93 mm and provides a power rating of 40 VA. This transformer is typically used in automation applications to ensure safety and reliability in the power supply system.
Type Safety transformer
Connection Spring-loaded terminal
Dim (L x W x H) 93 x 78 x 79 mm
Frequency 50 - 60Hz
Height 79mm
Input Voltage 230/400V AC
Input voltage (number x voltage) 1 x 230 V, 400 V
Insulation class T 40/B
Length 93mm
Max. ambient temperature +40°C
Min. ambient temperature -20°C
Misc Attribute MTS 0040-230-400/24
No. of inputs 1
No. of outputs 1
Output voltage 24V AC
Output voltage (number x voltage) 1 x 24 V AC
Power 40VA
Primary Voltage 230/400V AC
Protection class IP20
Standards Complies with EN 61558 · Contact protection as per EN 60529
Width 78mm
