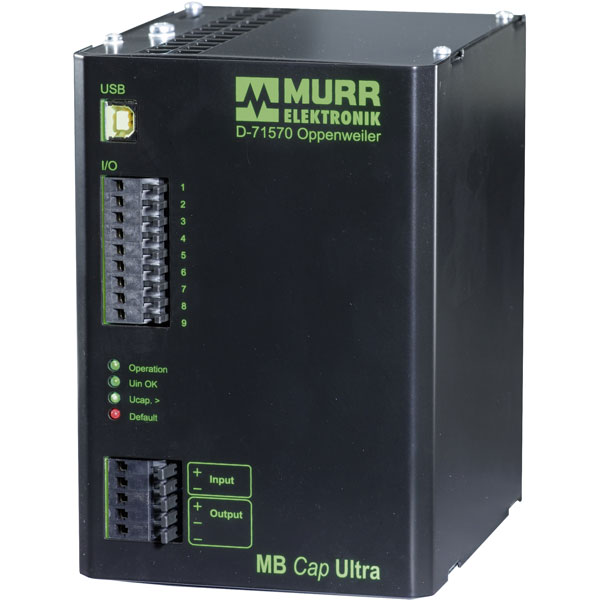

Murr Elektronik MB Cap DIN Rail Buffer Module

Murr Elektronik Brand: Murr Elektronik

A range of Murr Elektronik DIN Rail Buffer Modules from the MB Cap Series. The modules are maintenance free capacitor based, with SFB technology (Selective Fuse Breaking). Systems can therefore also run in unstable networks or, in the event of longer failures, are correctly shut down after all relevant process data is saved.

The buffer modules also act as a power storage device for peak loads and for tripping fuses. For function monitoring, an active switching output and a control lamp are used. With the integrated diode, loads can be divided into buffered and unbuffered loads. The buffer time is thus extended and the buffered loads are protected against errors in the internal network.

  • Bridges 80% of all network failures
  • Unlimited buffer time
  • 2 signalling contacts
  • Maintenance free
  • Buffered and unbuffered load possible
  • Buffering ratio as per choice
  • Plug-in terminals - wiring can be changed during operation
  • Unlimited parallel shift ability
  • Less width and less volume
  • Available with 3 and 20A output current
  • Available models: 85394, 85460, 85462 and 85467
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Input Voltage Number of Outputs
Murr Elektronik 85394 DIN Rail Buffer Module 24VDC 20A
Murr Elektronik 85394 DIN Rail Buffer Module 24VDC 20A
Standard range
Order code: 63-0438
MPN: 85394

3 in stock, despatched in 4 working days
1+ £235.34
Price per unit Ex VAT 		24V 20A 23 - 30V 1
Murr Elektronik 85460 DIN Rail Buffer Module 24VDC 3A
Murr Elektronik 85460 DIN Rail Buffer Module 24VDC 3A
Standard range
Order code: 63-0439
MPN: 85460

3 in stock, despatched in 4 working days
1+ £336.97
Price per unit Ex VAT 		23V 3A 20.4 - 26.4V 1
Mftrs. Part No.8539485460
Order code63-043863-0439
Input
Input voltage23 to 30V DC20.4 to 26.4V DC
Input current85mA3A
Protection of voltage spikesmax. 35V DCmax. 35V DC
Loading time20 to 45smin 25s
General Data
Mounting methodDIN-rail mountableDIN-rail mountable
Efficiency95%95%
Temperature range0°C to +70°C20°C to +60°C
Output
Output voltage24V DC23V DC
Output currentmax 20A (+70°C)max 3A (+60°C)
Current limit26A26A
Buffer time0.2s (20A); 4 s (1A)7s (3A); 21s (1A)
----------------------------------------------------------------------------
Mftrs. Part No.8546285467
Order code63-043963-0439
Input
Input voltage0 to 26.4V DC10.5 to 15V DC; 24 to 27V DC
Input current3A10A
General data
Mounting methodDIN-rail mountableDIN-rail mountable
Efficiency90%90%
Temperature range20°C to +60°C20°C to +60°C
Output
Output voltage0 to 26.4V DC11.3V DC ±4%; 23.3V DC ±2%
Output currentmax 3A (+60°C)max 3A (+60°C)
Buffer time12s (3A); 36s (1A)38s (10A); 380s (1A)
