Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608986

Molex Brand: Molex
Molex produces a range of mini-latch headers featuring various pin counts and a 2.5mm spacing, designed for wire-to-board connections and finished with tin plating.
Description Image Product Buy Pricing (Ex VAT) Case Material Connector orientation Engineering Part No Engineering Series Name Engineering Series No Total number of pins Type Number of Rows Board contact surface Coating thickness (PCB side) Connection Connector coating thickness Connector contact surface Contact Material CS Factory colour Max. temperature Min. temperature Misc Attribute Nominal Current

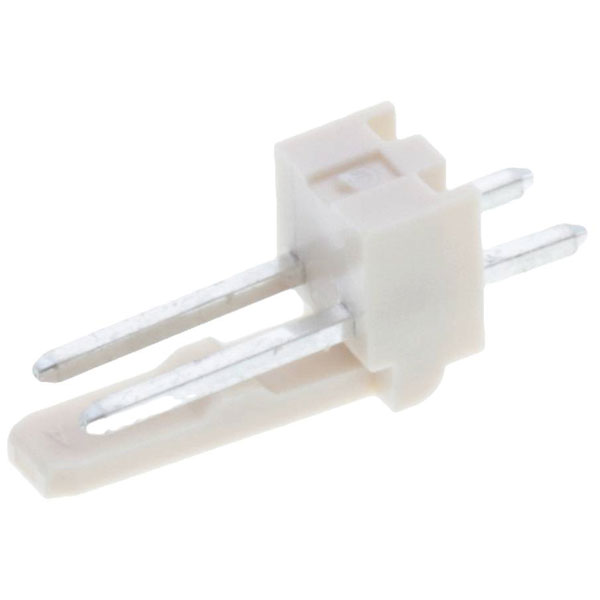

Molex 22041021 Mini-latch Header 2-pin 2.5mm Tin Plating Vertical
Molex 22041021 Mini-latch Header 2-pin 2.5mm Tin Plating Vertical
Standard range
Order code: 05-3240
MPN: 22041021

2,486 in stock, despatched in 4 working days
20+ £0.265
Price per unit Ex VAT 		Polyamide Perpendicular (to the PCB) 5045-02A 2.5 MM Header 05045 2 Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass 2.5mm Ecru +105°C -40°C Molex MOL Power & Signal Sol. 3A
Molex 22041031 Mini-latch Header 3-pin 2.5mm Pitch Tin Plating
Molex 22041031 Mini-latch Header 3-pin 2.5mm Pitch Tin Plating
Standard range
Order code: 05-3241
MPN: 22041031

2,929 in stock, despatched in 4 working days
10+ £0.659
Price per unit Ex VAT 		Polyamide Perpendicular (to the PCB) 5045-03A 2.5 MM Header 05045 3 Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass 2.5mm Ecru +105°C -40°C Molex MOL Power & Signal Sol. 3A
Molex 22041041 Mini-latch Wire-to-board Header 4-pin 2.5mm Spacing
Molex 22041041 Mini-latch Wire-to-board Header 4-pin 2.5mm Spacing
Standard range
Order code: 05-3242
MPN: 22041041

2,824 in stock, despatched in 4 working days
20+ £0.265
Price per unit Ex VAT 		Polyamide Perpendicular (to the PCB) 5045-04A 2.5 MM Header 05045 4 Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass 2.5mm Ecru +105°C -40°C Molex MOL Power & Signal Sol. 3A
Molex 22051032 Mini-latch KK Header 3-pin 2.5mm Right-angle Tin
Molex 22051032 Mini-latch KK Header 3-pin 2.5mm Right-angle Tin
Standard range
Order code: 05-3244
MPN: 22051032

922 in stock, despatched in 4 working days
10+ £0.535
50+ £0.459
100+ £0.405
250+ £0.353
1000+ £0.325
Price per unit Ex VAT 		Nylon (NL) Parallel (to the PCB) 5046-03A 2.5 MM KK 05046 3 Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass 2.5mm Ecru +105°C -40°C Molex MOL Power & Signal Sol. 3A
