Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608975

Molex Brand: Molex
Molex manufactures a range of pin strip connectors including right-angle and vertical configurations with varying pin counts and pitch dimensions.
Description Image Product Buy Pricing (Ex VAT) Number of Positions Case Material Colour Connector orientation Cross Section Engineering Part No Engineering Series Name Engineering Series No Max. temperature Min. temperature Nominal Current Nominal Voltage Type Number of Rows Board contact surface Coating thickness (PCB side) Connection Connector coating thickness Connector contact surface Contact Material

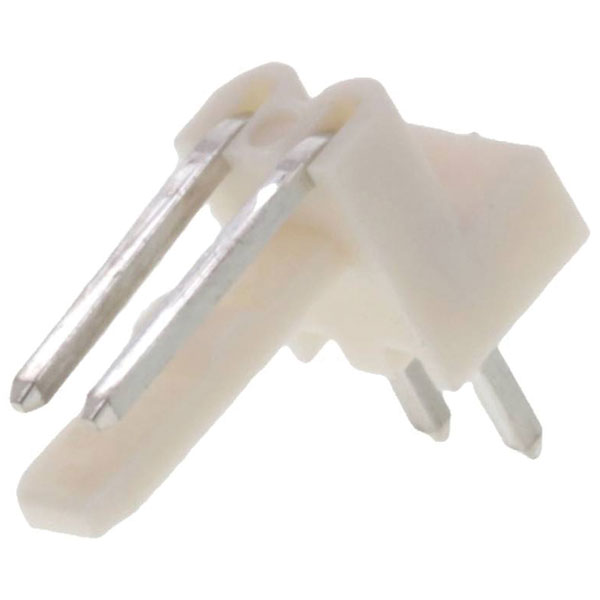

Molex 22051022 KK Pin Strip 2 Pins 2.5mm Pitch Right-angle Sn-plated
Molex 22051022 KK Pin Strip 2 Pins 2.5mm Pitch Right-angle Sn-plated
Extended range
Order code: 05-3243
MPN: 22051022

1,678 available to back orderBack-order availability date - 10/01/2026
10+ £0.429
50+ £0.365
100+ £0.324
500+ £0.277
2000+ £0.257
Price per unit Ex VAT 		2 Nylon (NL) Ecru Parallel (to the PCB) 2.5mm 5046-02A 2.5 MM KK 05046 +105°C -40°C 3A 250V Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass
Molex 22053071 KK254 Pin Strip 7 Pins 2.54mm Spacing Right-angle Header
Molex 22053071 KK254 Pin Strip 7 Pins 2.54mm Spacing Right-angle Header
Extended range
Order code: 05-3249
MPN: 22053071

229 available to back orderBack-order availability date - 10/01/2026
20+ £0.210
Price per unit Ex VAT 		7 Nylon (NL) Ecru white Parallel (to the PCB) 2.54mm A-7478-07A222 100 HDR FLK RA SQ NY 07478 4A 500V Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass
Molex 26604130 KK 396 Pin Strip 13-pin 3.96mm Vertical Friction Lock
Molex 26604130 KK 396 Pin Strip 13-pin 3.96mm Vertical Friction Lock
Extended range
Order code: 05-3318
MPN: 26604130

14 available to back orderBack-order availability date - 10/01/2026
2+ £2.27
200+ £1.89
750+ £1.72
3000+ £1.47
6000+ £1.43
Price per unit Ex VAT 		13 Polyester Ecru Perpendicular (to the PCB) 3.96mm 41791-0013 .156 HDR,LKNG STR,SQ 41791 7A 250V Built-in pin strip (standard) 1 Tin 5.08µm Soldering 5.08µm Tin Brass
