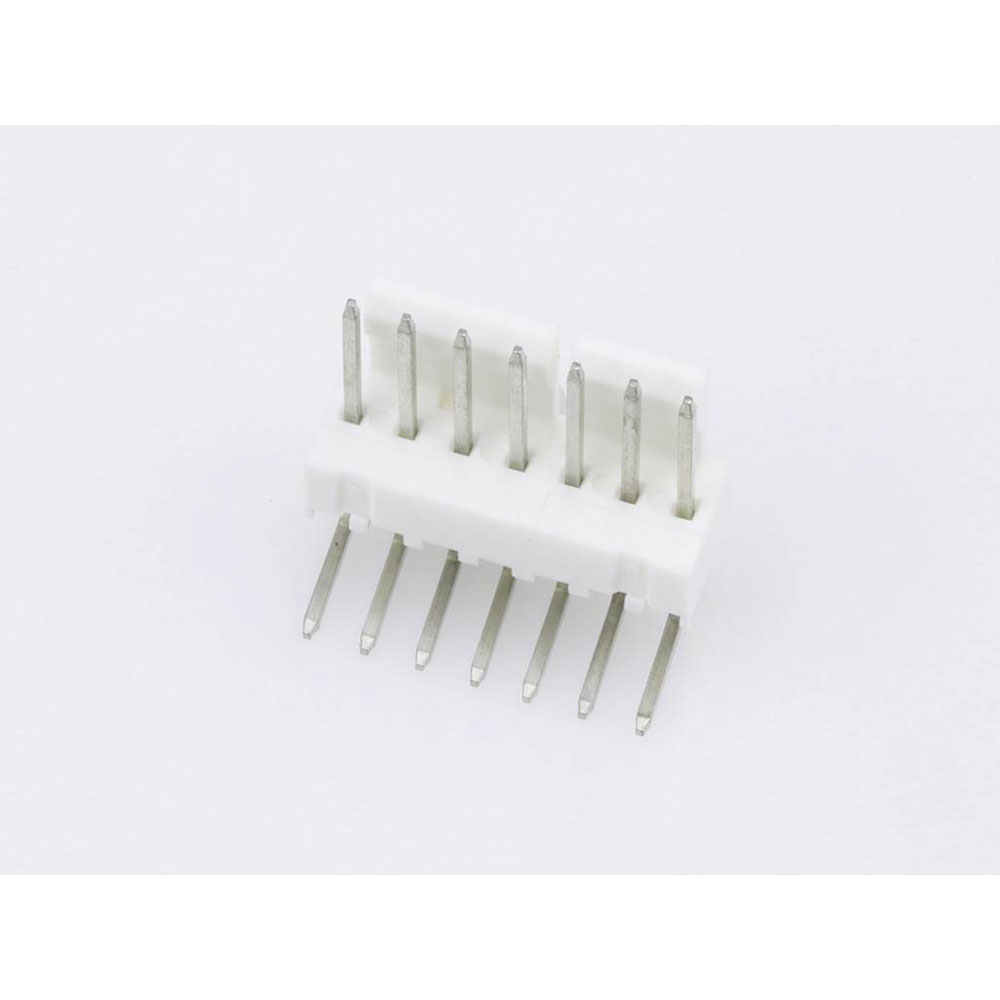

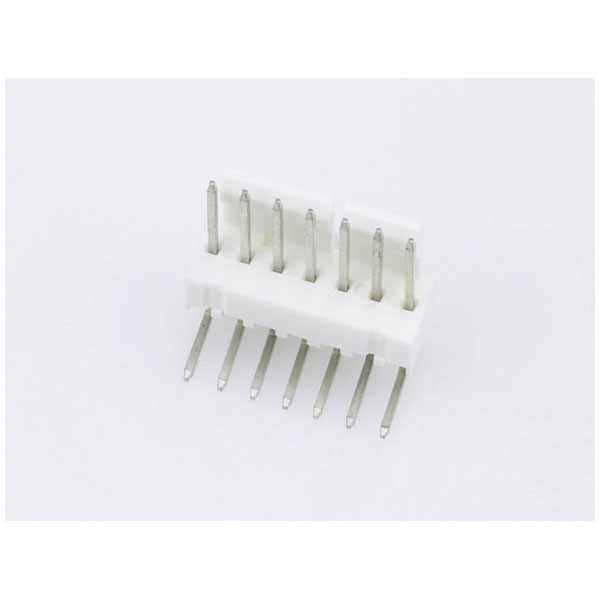

Molex 22053071 KK254 Pin Strip 7 Pins 2.54mm Spacing Right-angle Header

Molex
Order Code:

05-3249

Brand: Molex MPN: 22053071 EAN-13: 2050007103721
Qty Unit Price (Ex VAT)
20+ £0.210
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
222 in stock, despatched in 4 working days

The Molex built-in pin strip is manufactured by Molex and features a total of seven pins with a contact spacing of 2.54 mm. This standard pin strip is typically used in electronic prototyping and circuit board connections. Packaged as a single piece in a bag, it provides a reliable solution for various electronic and electrical applications.
Type Built-in pin strip (standard)
Number of Positions 7
Pitch 2.54mm
Number of Rows 1
Application Signal, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Tin
Breakaway No
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 7
Circuits maximum 7
Coating thickness (PCB side) 5.08µm
Color resin Natural (White)
Colour Ecru white
Component type PCB Header
Connection Soldering
Connector coating thickness 5.08µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross Section 2.54mm
Csa LR19980
Current maximum per contact 4.0A
Delivery unit 2850
Design registration eligibility false
Durability mating cycles max 25
Duration at max process temperature seconds 5
ELV status Not Relevant
Engineering number A-7478-07A222
Engineering Part No A-7478-07A222
Engineering Series Name 100 HDR FLK RA SQ NY
Engineering Series No 07478
First mate last break No
First published date 2007-06-01
Flammability 94V-0
G a d s l/ i m d s Compliant with Exemption 44; 33
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Lead free process capability WAVE
Lock to mating part Yes
Material metal Brass
Material plating mating Matte Tin
Material plating termination Matte Tin
Material resin Nylon
Material type Finished Goods
Max cycles at max process temperature 1
Minimum line quantity 14250
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.928/g
Nominal Current 4A
Nominal Voltage 500V
Orientation Right Angle
Packaging Type Bag
Pc tail length 3.58mm
Pcb locator No
Pcb retention No
Pcb thickness recommended 1.60mm
Pitch mating interface 2.54mm
Pitch termination interface 2.54mm
Plating min mating 2.540µm
Plating min termination 2.540µm
Polarized to mating part Yes
Polarized to pcb Yes
Primary pack qty 475
Process temperature max c 235
Product name KK 254
Product number display 22053071
Product number hyphen 22-05-3071
Product number sap 0022053071
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 7478
Ro h s status Compliant per EU 2015/863
Sampleable True
Shrouded Partial
Stackable Yes
Taxonomy PCB Headers and Receptacles
Temperature range operating -40° to +80°C
Termination interface style Through Hole
Ul E29179
Upc 800753644946
Voltage maximum 500V AC
