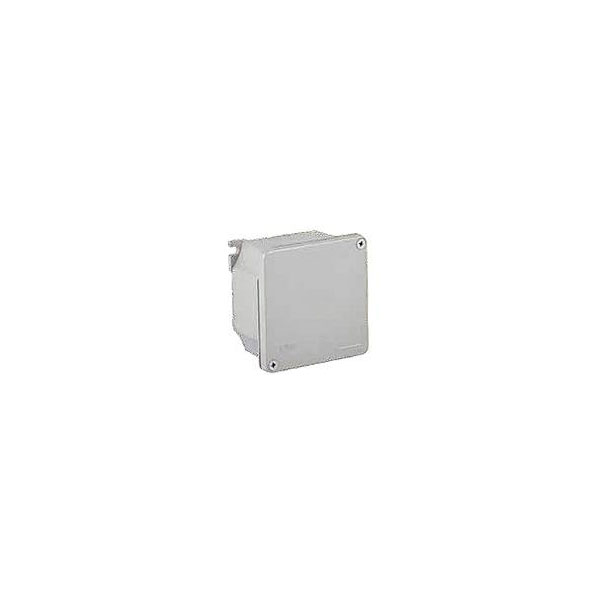

Molex's universal enclosure 936040012 is made from powder-coated die-cast aluminium, offering durability and a sleek grey finish. Designed as part of the MWE Industrial Solution, it provides robust protection for electronic components. Suitable for a variety of industrial applications, this enclosure ensures secure housing in challenging environments.
| Type |
Universal enclosure |
| Enclosure Length |
101mm |
| Enclosure Width |
101mm |
| Enclosure Height |
58mm |
| Colour |
Grey |
| Protection Rating |
None |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Delivery unit |
40 |
| Design registration eligibility |
true |
| Dim |
(L x W x H) 101 x 101 x 58 mm |
| ELV status |
Not Relevant |
| Enclosure coating |
Polyester Powder |
| Enclosure color |
Grey RAL 9006 |
| Engineering number |
8000.6261.0 |
| Engineering Part No |
8000.6261.0 |
| Engineering Series Name |
Alum Enclos & acc. |
| Engineering Series No |
93604 |
| First published date |
2015-02-06 |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Inside height |
91mm |
| Inside Width |
91mm |
| Internal depth |
53mm |
| Internal dimensions |
91 x 91 x 53mm |
| IP Rating |
IP66, IP69 |
| Material |
powder-coated |
| Material enclosure |
Die-cast Aluminum |
| Material type |
Finished Goods |
| Minimum line quantity |
40 |
| Misc Attribute |
MWE Industrial Solution |
| Mounting Style |
External Flanges |
| Net weight |
271.500/g |
| Outside dimensions |
101 x 101 x 58mm |
| Packaging Type |
Carton |
| Product category |
Die-cast Enclosures |
| Product name |
Heavy-Duty Connectors |
| Product number display |
936040012 |
| Product number hyphen |
93604-0012 |
| Product number sap |
0936040012 |
| Reach status |
Not Contained per D(2025)4165-DC (25 June 2025) |
| Reference series |
93604 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Standard |
ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2, EN 60670-1, EN 62208, EN-60670-22, NMX-J235/1-2 |
| Taxonomy |
Die-cast Enclosures |
| Temperature range operating |
-40° to +125°C |
| Upc |
887191867847 |
