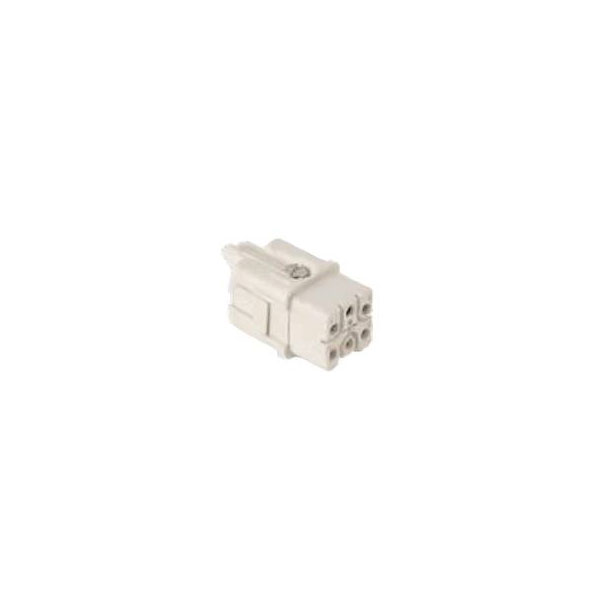

The Molex heavy duty connector 936010435 is manufactured by MWE Industrial Solution. This grey power connector is robust and designed for industrial applications, ensuring reliable and secure connections. It is commonly used in environments requiring durable and long-lasting electrical connections.
| Type |
Power connector |
| Current Rating |
16A |
| Contact Termination |
Crimp |
| Wire Gauge AWG |
14 |
| Gender |
Female |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Polycarbonate |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Colour |
Grey |
| Component size |
3A «21x21» |
| Component type |
Inserts - Crimp Contact |
| Connector Type |
Socket |
| Csa |
256883 |
| Current maximum per contact |
16.0A |
| Delivery unit |
10 |
| Design registration eligibility |
true |
| Durability mating cycles max |
500 |
| ELV status |
Not Relevant |
| Engineering number |
7605.5801.0 |
| Engineering Part No |
7605.5801.0 |
| Engineering Series Name |
Cont,ins. ,hoods,hsg |
| Engineering Series No |
93601 |
| First published date |
2015-04-22 |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Insert color |
Grey |
| Insert series |
S-QD5/0 |
| Material insert |
Polycarbonate |
| Material type |
Finished Goods |
| Minimum line quantity |
10 |
| Misc Attribute |
MWE Industrial Solution |
| Net weight |
13.800/g |
| Number of pins |
5 |
| Number of Rows |
2 |
| Number of Ways |
5 |
| Packaging Type |
Bag |
| Polarized to mating part |
Yes |
| Poles |
5 |
| Product category |
Heavy Duty Connectors |
| Product name |
Heavy-Duty Connectors |
| Product number display |
936010435 |
| Product number hyphen |
93601-0435 |
| Product number sap |
0936010435 |
| Rated voltage |
230 V;400V |
| Reach status |
Not Contained per D(2025)4165-DC (25 June 2025) |
| Reference series |
93601 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Standard |
CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Taxonomy |
Heavy-Duty Connectors |
| Temperature range operating |
-40° to +125°C |
| Test current |
16A |
| Ul |
E249674 |
| Upc |
887191890432 |
| Voltage maximum |
230V / 400V |
