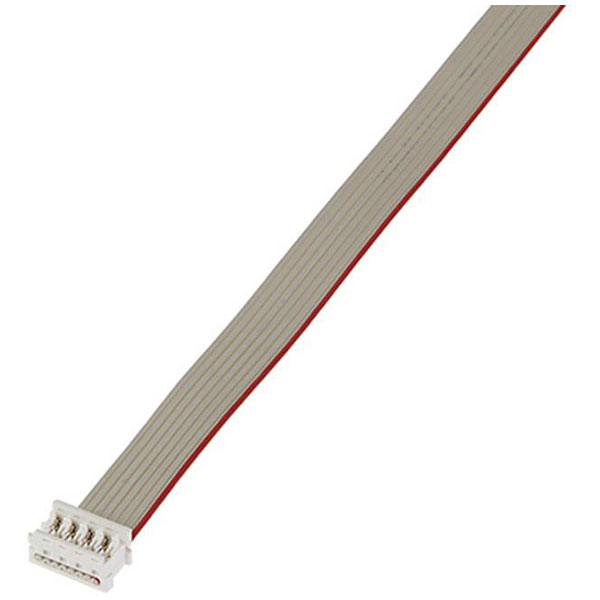

Molex manufactures the 923150810 socket housing cable, featuring 8 pins with a contact spacing of 1.27 mm. This part is typically used in electronic and electrical connections requiring precise and secure fits. It is suitable for applications in various industries, including consumer electronics and automotive equipment.
| Connector 1 |
IDT |
| Connector 2 |
IDT |
| Number of Cores |
8 |
| Conductor Cross Section |
1.27mm |
| Colour |
Grey |
| Length |
0.1m |
| Type |
Socket housing cable |
| Assembly configuration |
Dual Ended Connectors |
| AWG |
28 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable Length |
0.10m |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
8 |
| Circuits maximum |
8 |
| Coating thickness (PCB side) |
2.032µm |
| Color resin |
Natural |
| Connector coating thickness |
2.032µm |
| Connector contact surface |
Tin |
| Connector to connector |
Picoflex IDT-to-IDT |
| Current maximum per contact |
1.2A |
| Delivery unit |
1000 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
923150810 |
| Engineering Series Name |
PICOFLEX HARNESS |
| Engineering Series No |
92315 |
| First published date |
2007-06-18 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
No |
| Material |
Tin |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Maximum Wire Size AWG |
28 |
| Minimum line quantity |
2000 |
| Misc Attribute |
Molex MOL Industrial Solution |
| Net weight |
2.380/g |
| Nominal Current |
1.2A |
| Nominal Voltage |
250V |
| Number of Rows |
2 |
| Packaging Type |
Bag |
| Pitch |
1.27mm |
| Pitch mating interface |
1.27mm |
| Plating min mating |
2.032µm |
| Plating min termination |
2.032µm |
| Primary pack qty |
1000 |
| Product name |
Picoflex |
| Product number display |
923150810 |
| Product number hyphen |
92315-0810 |
| Product number sap |
0923150810 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
92315 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
IDT or Pierce |
| Total number of pins |
8 |
| Upc |
800754010306 |
| Voltage maximum |
250V |
| Waterproof dustproof |
No |
| Wire cable type |
PVC, Ribbon Cable |
| Wire size awg |
28 |
