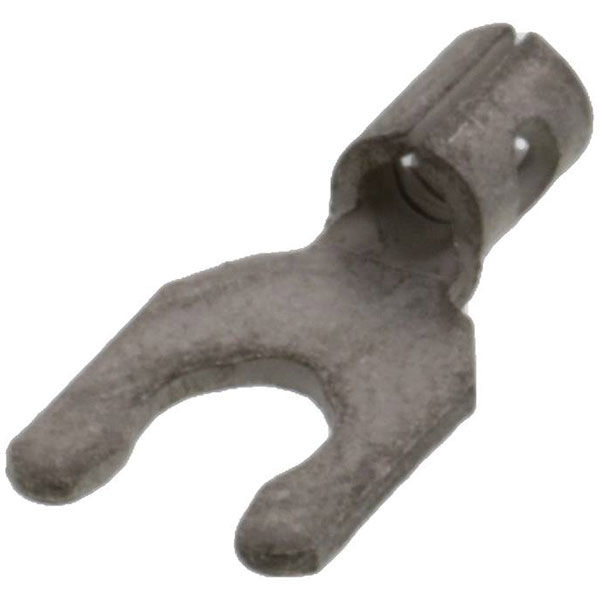

Molex 191270012 Avikrimp Flanged Spade Terminal 22-18 AWG 5 Mm Hole

The Molex 191270012 U terminal is a crimp connector with a blade terminal and a hole diameter of 5 mm. This durable component is typically used in industrial and automotive applications for reliable electrical connectivity. Available in bulk, it is designed to facilitate secure and efficient electrical connections in various systems.

Insulation	Nylon (PA)
Barrel Type	Closed
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Csa	LR18689
Delivery unit	4000
Design registration eligibility	true
ELV status	Not Relevant
Engineering number	AA-815-10
First published date	2007-05-15
Flammability	94V-2
G a d s l/ i m d s	Not Relevant
H f l h status	Low-Halogen per IEC 61249-2-21
Hole Ø	5mm
Keyword	Spade Terminal, Spade Terminals
Material plating mating	Tin
Material type	Finished Goods
Maximum Wire Size AWG	22
Minimum line quantity	4000
Net weight	0.760/g
Packaging Type	Bulk
Primary pack qty	1000
Product name	Avikrimp
Product number display	191270012
Product number hyphen	19127-0012
Product number sap	0191270012
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	19127
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Stud Size	10 (M5)
Style	Spade
Taxonomy	Ring and Spade Terminals
Type	U terminal
Ul	E32244
Upc	800753098947
Wire insulation diameter	3.56mm max.
Wire size awg	18, 20, 22
Wire size mm	0.25-1.50
