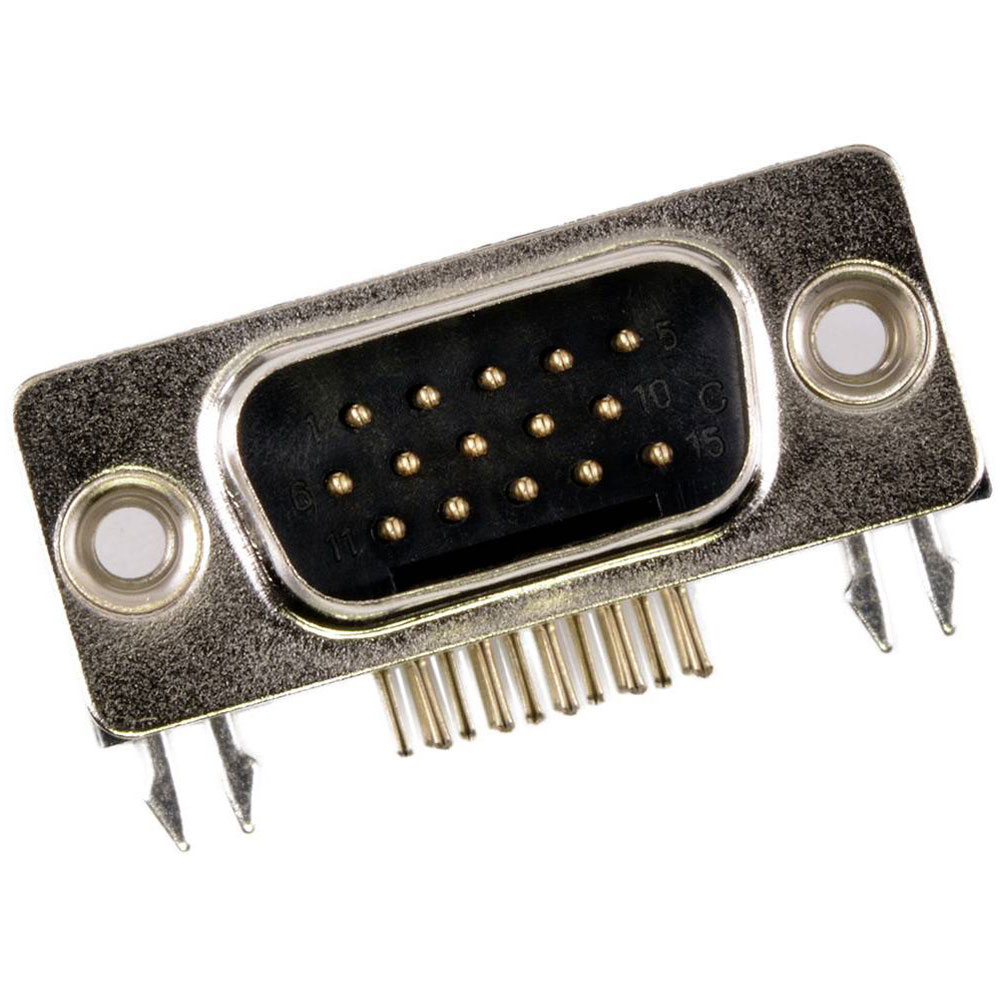

The Molex 1731130182 D-sub plug features 15 pins and is designed for soldering connections, making it suitable for reliable and secure electronic interfaces. This connector is commonly used in telecommunications, computer equipment, and industrial machinery. It is supplied individually, packaged in trays for safe transport and storage.
| Type |
D-SUB plug |
| Mounting Type |
Soldering |
| No. of Ways |
15 |
| Connection Angle |
90° |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Circuits loaded |
15 |
| Circuits maximum |
15 |
| Color resin |
Black |
| Connector Type |
Plug |
| Contact Material |
Copper alloy |
| Contact surface |
Gold on nickel |
| CS |
1.98mm |
| Current maximum per contact |
3.0A |
| Delivery unit |
200 |
| Design registration eligibility |
true |
| Duration at max process temperature seconds |
10 |
| Elv status |
Not Relevant |
| Engineering number |
CT09-15P5-L228 |
| Engineering Part No |
CT09-15P5-L228 |
| Engineering Series Name |
FCT HD D-SUB |
| Engineering Series No |
173113 |
| Factory colour |
Black |
| First published date |
2019-06-07 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Male |
| H f l h status |
Not Reviewed per IEC 61249-2-21 |
| IP Rating |
IP20 |
| Magnetic |
Yes |
| Material contact |
Copper Alloy |
| Material resin |
PBT |
| Material shell |
Steel |
| Material type |
Finished Goods |
| Mating cycles |
50 |
| Max cycles at max process temperature |
1 |
| Minimum line quantity |
200 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
11.000/g |
| No. of Rows |
3 |
| Number of Rows |
3 |
| Orientation |
Right-Angle |
| Packaging Type |
Tray |
| Panel mount |
Rear |
| Panel mount method |
Thread-In |
| Pc tail length |
9.55mm |
| Pcb locator |
Yes |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.60mm |
| Pitch mating interface |
1.98mm |
| Pitch termination interface |
2.54mm |
| Plating contact |
Gold over Nickel |
| Plating shell |
Nickel |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Ports |
1 |
| Primary pack qty |
100 |
| Process temperature max c |
270 |
| Product name |
FCT Products |
| Product number display |
1731130182 |
| Product number hyphen |
173113-0182 |
| Product number sap |
1731130182 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) |
| Reference series |
173113 |
| Ro h s status |
Not Compliant per EU 2015/863 |
| Sampleable |
True |
| Shielded |
Yes |
| Taxonomy |
D-Sub Connectors |
| Temperature Range |
-55° - +105 °C.°C |
| Temperature range operating |
-55° to +105°C |
| Termination Style |
Through Hole |
| Upc |
191128256810 |
| Waterproof dustproof |
No |
| Waterproof dustproof type |
IP20 |
