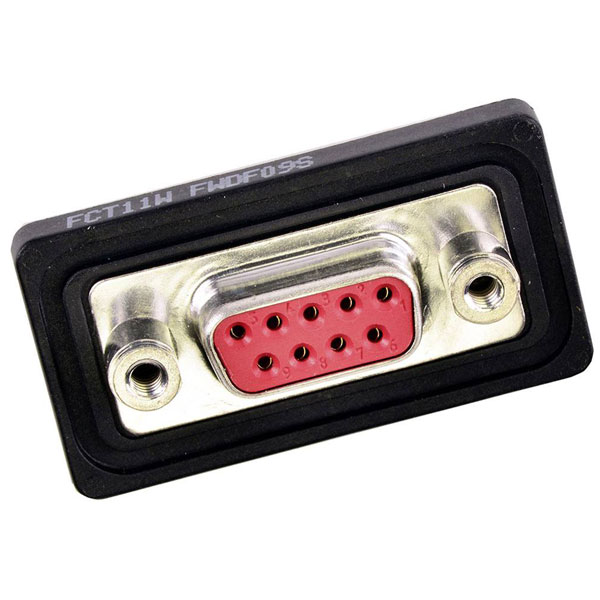

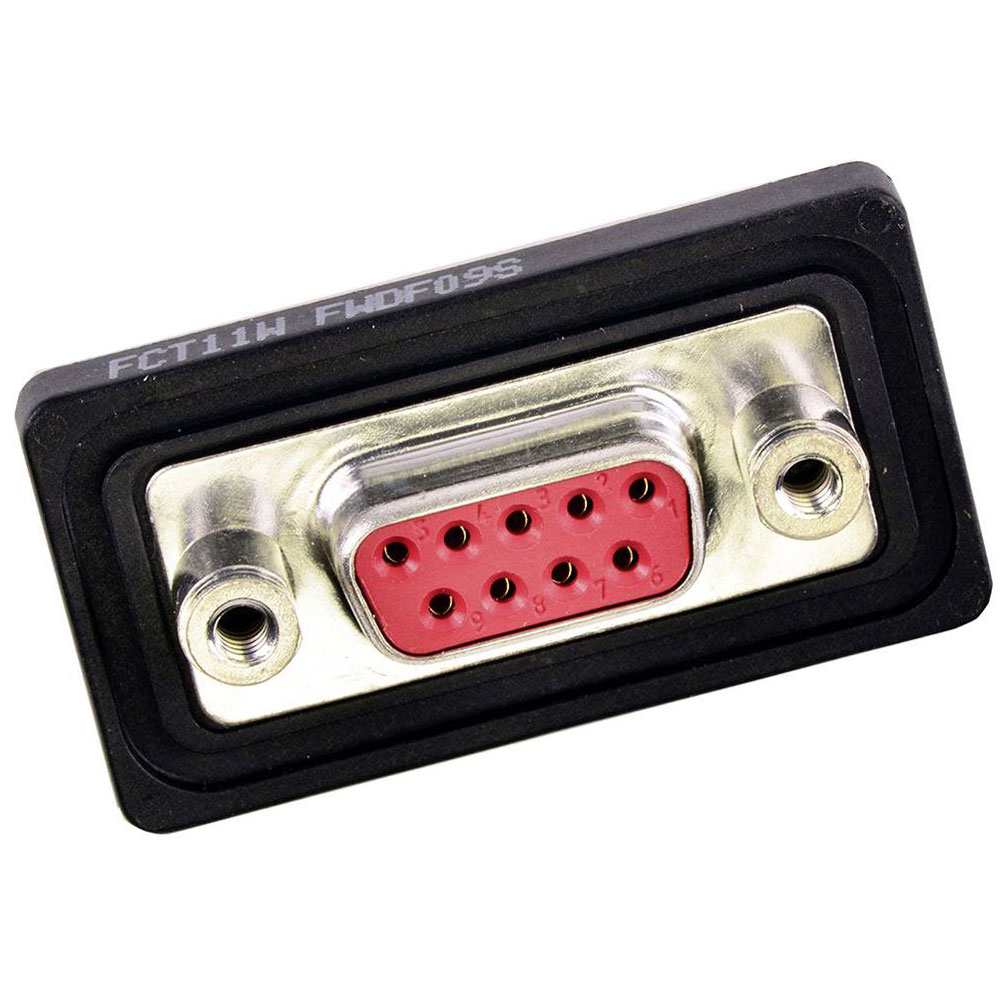

Molex's D-SUB plug, model 1731100021, is a 9-pin connector designed for soldering applications. This product is typically used in electronic equipment for reliable signal and power connections. The connector is sold individually and packaged in cartons, ideal for both industrial and consumer electronics use.
| Type |
D-SUB plug |
| Plug / Socket |
Socket |
| Mounting Type |
Soldering |
| No. of Ways |
9 |
| Mounting Direction |
Straight |
| Connection Angle |
180° |
| Plating Material |
Gold on nickel |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Circuits loaded |
9 |
| Circuits maximum |
9 |
| Color resin |
Red |
| Contact Material |
Copper alloy |
| CS |
2.84mm |
| Current maximum per contact |
7.5A |
| Delivery unit |
50 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
FWDF09S |
| Engineering Part No |
FWDF09S |
| Engineering Series Name |
FCT WATERPROOF |
| Engineering Series No |
173110 |
| Factory colour |
Red |
| First published date |
2019-06-07 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female |
| H f l h status |
Not Reviewed per IEC 61249-2-21 |
| IP Rating |
IP67 |
| Magnetic |
Yes |
| Material contact |
Copper Alloy |
| Material resin |
PBT |
| Material shell |
Brass |
| Material type |
Finished Goods |
| Mating cycles |
500 |
| Minimum line quantity |
50 |
| Misc Attribute |
MOL Power & Signal Sol. |
| Net weight |
11.500/g |
| No. of Rows |
2 |
| Number of Rows |
2 |
| Packaging Type |
Carton |
| Panel mount |
Front |
| Panel mount method |
Thread-In |
| Pcb locator |
No |
| Pcb retention |
No |
| Pitch mating interface |
2.84mm |
| Pitch termination interface |
2.84mm |
| Plating shell |
Tin |
| Polarized to mating part |
Yes |
| Ports |
1 |
| Product name |
FCT Products |
| Product number display |
1731100021 |
| Product number hyphen |
173110-0021 |
| Product number sap |
1731100021 |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) SCIP:06223bce-55ce-4c62-b2b5-a3a8649beed8 |
| Reference series |
173110 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
True |
| Shielded |
Yes |
| Taxonomy |
D-Sub Connectors |
| Temperature Range |
-25° - +70°C |
| Temperature range operating |
-25° to +70°C |
| Termination Style |
Solder Cup |
| Upc |
889056324939 |
| Waterproof dustproof |
Yes |
| Waterproof dustproof type |
IP67 |
| Wire size awg |
20 |
