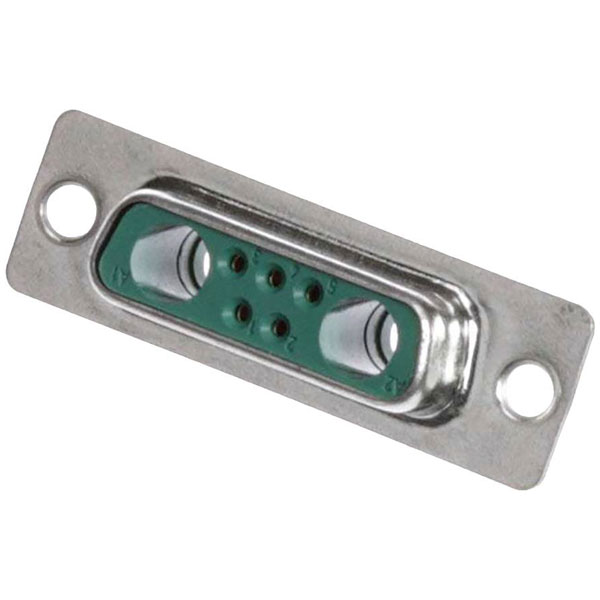

Molex 1731070060 D-sub Plug 7 Pins Gold Plating Green Insulator

Molex
Order Code:

05-3075

Brand: Molex MPN: 1731070060 EAN-13: 2050007096252
Qty Unit Price (Ex VAT)
1+ £4.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 4 working days

The Molex 1731070060 is a D-sub plug featuring 7 pins and is designed for soldering applications. This component is typically used in data communication interfaces and electronics requiring reliable connections. Widely used in various industrial and commercial applications, it ensures secure signal transmission.
Type D-SUB plug
Mounting Type Soldering
No. of Ways 7
Connection Angle 180°
Base unit of measure PC
Base unit of measure desc piece
China ro h s status 50 Image per SJ/T 11365-2006
Circuits loaded 5
Circuits maximum 7
Color resin Green
Connector Type Socket
Contact Material Copper alloy
Contact surface Gold on nickel
CS 2.84mm
Current maximum per contact 7.5A
Delivery unit 100
Design registration eligibility true
Elv status Not Relevant
Engineering number FM7W2S-K121
Engineering Part No FM7W2S-K121
Engineering Series Name FCT MIXED LAYOUT
Engineering Series No 173107
Factory colour Green
First published date 2019-06-07
G a d s l/ i m d s Not Relevant
Gender Female
H f l h status Not Low-Halogen per IEC 61249-2-21
IP Rating IP20
Magnetic Yes
Material contact Copper Alloy
Material resin PBT
Material shell Steel
Material type Finished Goods
Mating cycles 500
Minimum line quantity 100
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 6.700/g
No. of Rows 2
Number of Rows 2
Orientation Straight
Packaging Type Carton
Panel mount Rear
Panel mount method Flange
Pcb locator No
Pcb retention No
Pitch mating interface 2.84mm
Pitch termination interface 2.84mm
Plating contact Gold over Nickel
Plating min mating 0.800µm
Plating shell Tin
Polarized to mating part Yes
Ports 1
Product name FCT Products
Product number display 1731070060
Product number hyphen 173107-0060
Product number sap 1731070060
Prop risk status Cancer, Developmental toxicity, Reproductive toxicity
Prop sub status Lead compounds
Reach status Contains Lead per D(2025)4165-DC (25 June 2025) SCIP:8b8d0517-a3cc-4fe0-9b46-033306fe32c6
Reference series 173107
Ro h s status Compliant with Exemption 6(c) per EU 2015/863
Sampleable True
Shielded Yes
Taxonomy D-Sub Connectors
Temperature Range -55° - +130°C
Temperature range operating -55° to +130°C
Termination Style Solder Cup
Upc 889056316996
Waterproof dustproof No
Waterproof dustproof type IP20
Wire size awg 20
