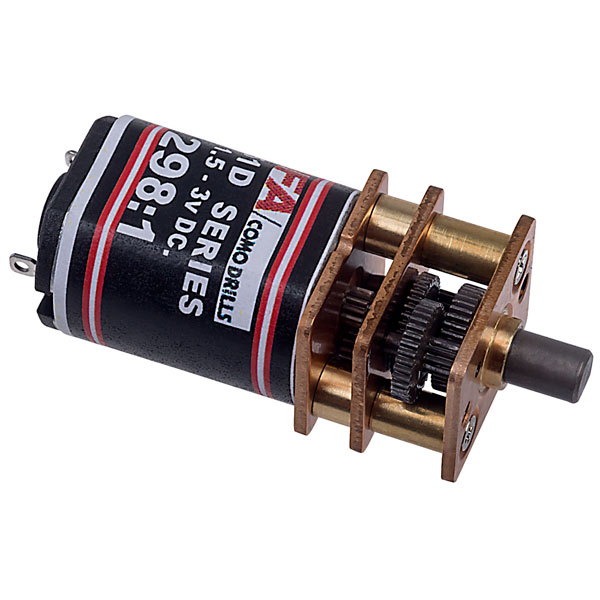

MFA 951D2981 Gearbox and Motor 298:1 3mm Shaft 1.5 to 3.0V

MFA
Order Code:

37-1140

Brand: MFA MPN: 951D2981 EAN-13: 5014111951033

Discontinued


Spur-geared metal gearbox, 298:1 Gear Ratio, 1.5 to 3V Voltage Rating, 0.58W Power Rating, 16,000rpm No Load Speed, 13,500rpm Maximum Speed, 0.32A Load Current, 3.9g-cm Maximum Continuous Torque, 20g-cm Stall Torque, 12mm Diameter, 2.5mm Shaft Diameter, 29.25mm Long, 10g weight. All-metal spur-geared motor, The Gearboxes are of All-Metal Construction and Employ Spurred Gears, Suitable for sub-miniature Applications, MFA/COMO 951D Series.


Supply Voltage 1.5 to 3V
Maximum Output Torque 0.04Ncm
Current (Max Torque) 320mA
Current (No Load) 100mA
Input Power (Max Torque) 0.58W
Speed (Max Torque) 52rpm
Speed (No Load) 25rpm

Questions

*Question functionality currently disabled
Wednesday, January 9, 2013 | Question by: Rapid Customer | Product code: 37-1140
Q. how fast does this motor spin
A. Hi Jim. Thank you for your question. The motor spins around 120RPM.
