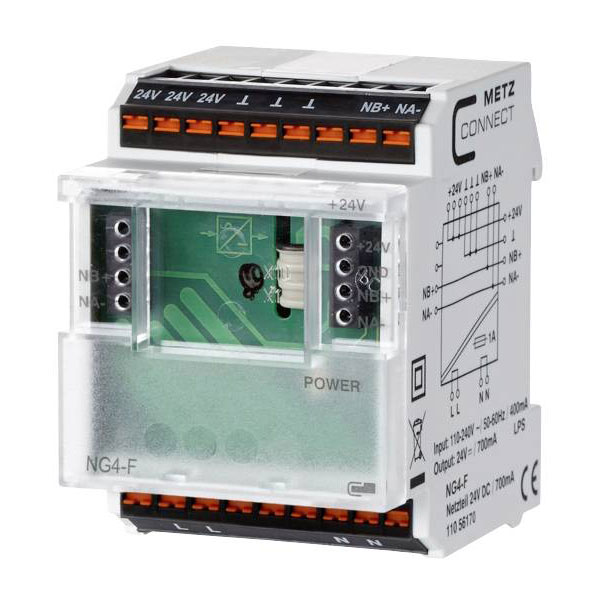

Metz Connect 11056170 NG4-F Power Supply 24V DC 16W TH35 Rail Mount

The Metz Connect NG4-F is a DIN rail mounted power supply unit, providing 24 V DC output at 700 mA with a total power capacity of 16 W. This industrial power supply module is ideal for integration in control cabinets and automation systems. Its robust design ensures reliable performance in demanding environments.

Power Rating	16W
Depth	60mm
Dimensions (L x W x H)	60 x 50 x 69.30mm
Height	69.30mm
Input voltage AC (frequency-specific)	110 - 240V
Inputs	1
IP Rating	IP40, Protection class II
Max. output current 1	700mA
Maximum input voltage [AC]	240V
Maximum Operating Temperature	+55°C
Minimum Input Voltage [AC]	110V
Misc Attribute	NG4-F
Nominal value output voltage 1 [DC]	24V
Operating temperature (min.)	-10°C
Output Current	700mA
Type of electric connection	Screw terminal
Voltage type (supply voltage)	PSUPSU
Weight	108g
Width	50mm
