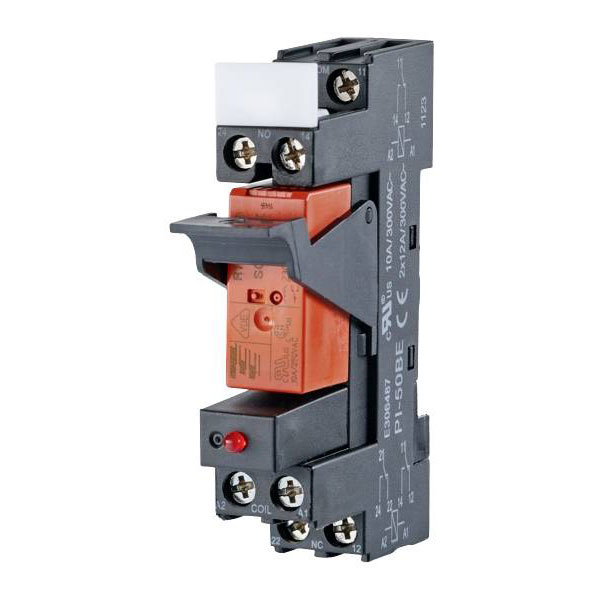

Metz Connect 11051110 Relay Module 24V AC Screw Terminals LED Module

Metz Connect
Order Code:

09-9573

Brand: Metz Connect MPN: 11051110 EAN-13: 4251394625607
Qty Unit Price (Ex VAT)
1+ £16.89
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Metz Connect RM21 24 V AC monitoring relay is an ideal solution for voltage monitoring applications. It features a 24 V AC power requirement and a single change-over contact. Manufactured by Metz Connect, the RM21 24 V AC is commonly used in electrical systems and industrial automation setups.
Type Relay
Width 15.50mm
Height 75mm
AWG (min.) 12
AWG max. 22
Connection Screw terminal
Contact Material AgNi 90/10
Contact Type 1 change-over
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.2mm²
Depth 65mm
Dim (W x H x D) 15.50 x 75 x 65 mm
Factory colour Black
Max. operating voltage 24V AC
Max. temperature +55°C
Min. temperature -20°C
Misc Attribute RM21 24 V AC
Switching voltage (max.) 250V AC
Switch-on current 30A
