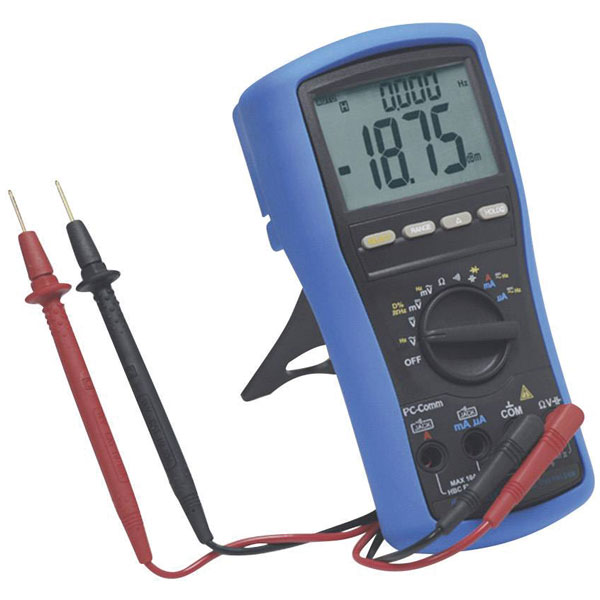

The Metrel MD 9016 SN is a digital multimeter designed for versatile testing, featuring a 6000 count display and capability for CAT II 1000 V and CAT III 600 V applications. Manufactured by Metrel, it serves as a voltage tester, ammeter, and frequency tester. It is ideal for electrical professionals who require reliable and precise measurements.
| Type |
Handheld multimeter |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
8A |
| AC resistance |
10MΩ |
| Amperage reading range AC (max.) |
8A |
| Amperage reading range DC (min.) |
0.1µA |
| Basic accuracy |
0.2% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| DC Resistance |
10MΩ |
| Dim |
(W x H) 80 mm x 161 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Frequency Range |
50 Hz - 400 HzHz |
| Frequency reading range |
5 Hz - 1 MHz |
| Height |
161mm |
| Interfaces |
optical |
| Measurement type (details) |
Average |
| Misc Attribute |
MD 9016 SN |
| Power supply (details) |
9V block battery |
| Reading range - capacity |
0.01 nF - 3000µF |
| Reading range - resistance |
0.1 Ω - 60 MΩ |
| Temperature reading range (max.) |
+1000°C |
| Temperature reading range (min.) |
-50°C |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
0.01mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.01mV |
| Weight |
340g |
| Width |
80mm |
