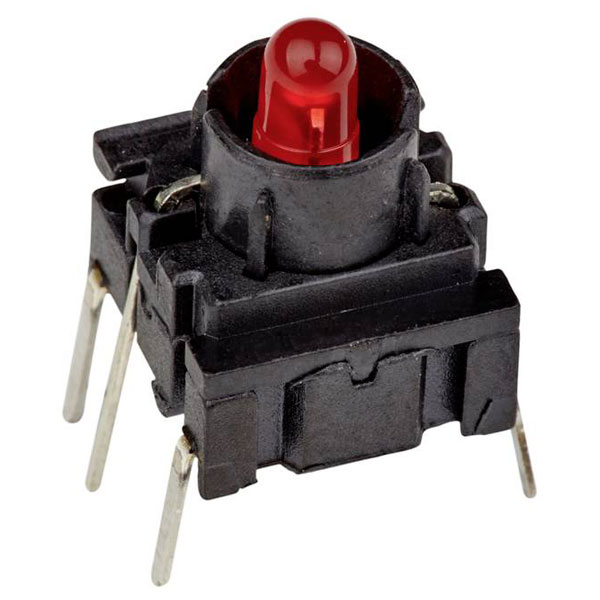

MEC 3FTH980 Multimec Switch 24V 50mA Momentary Red IP67 10x10x10.4mm

MEC
Standard range
Order Code:

09-8852

Brand: MEC MPN: 3FTH980 EAN-13: 2050011399394
Qty Unit Price (Ex VAT)
1+ £2.86
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
971 in stock, despatched in 4 working days

The MEC 3FTH980 switch from the Multimec 3F Series is a momentary switch rated at 24 V and 50 mA. It features a compact design with dimensions of 10 x 10 x 10.40 mm and an IP67 rating, making it suitable for harsh environments. Typically used in applications requiring precision and reliability, this switch is ideal for electronic devices, control panels, and industrial machinery.
Type Switch
Actuating force 3.5N
Bulb type LED (monochrome)
Casing/button colour Black
Colour Red
Contact resistance 10mΩ
Contact type 1 maker
Dim (L x W x H) 10 x 10 x 10.40 mm
Functions momentary
Height 10.40mm
Insulation resistance 10mΩ
IP rating IP67
Length 10mm
Lighting type LED
Material PPS
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Multimec 3F Series
RoHS-compliant Yes
Switch/button features + LED
Switching current (max.) 50mA
Switching voltage 24V
Width 10mm
