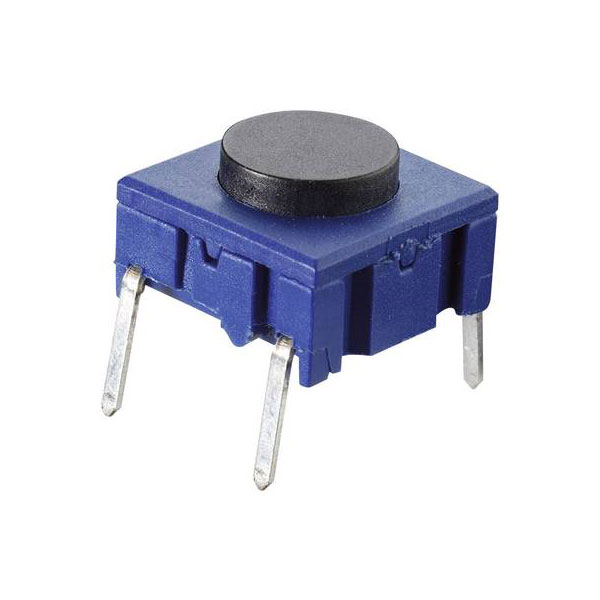

MEC 3ETH9-09.5 Pushbutton 24V DC 0.05A IP67 Momentary for Panels

MEC
Order Code:

12-4609

Brand: MEC MPN: 3ETH9-09.5 EAN-13: 2050000224850
Qty Unit Price (Ex VAT)
3+ £1.86
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
497 in stock, despatched in 4 working days

The MEC 3ETH9-09.5 pushbutton is a 24 V DC, 0.05 A momentary switch with an IP67 rating. It is durable and suitable for environments requiring protection against dust and water. Commonly used in control panels and electronic devices, it ensures reliable performance for temporary operations.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 0.05A
Board thickness (max.) 5.1mm
Casing/button colour Black
Connection Print
Contact Resistance 10 mΩ
Durability
>10 x 106 cycles
Electrical lifespan
>10 x 106 cycles
Front panel cut-out 10.1 x 10.1 mm
Height 9.5mm
Insulation Resistance >10MΩ
IP Rating IP67
Lighting type None
Max. temperature +115°C
Min. temperature -40°C
Misc Attribute 1 1 x off/(on)
Switch/button features Protruding
Switching Capacity max. 50 mA/24V DC
Switching Voltage 24V DC
Temperature Range -40 - +115°C
