Mean Well XLG-150-L-AB XLG LED driver 150W dimmable surge protection

Mean Well
Order Code:

05-1925

Brand: Mean Well MPN: XLG-150-L-AB EAN-13: 4021087051620
Qty Unit Price (Ex VAT)
1+ £34.98
10+ £31.47
25+ £30.22
50+ £29.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

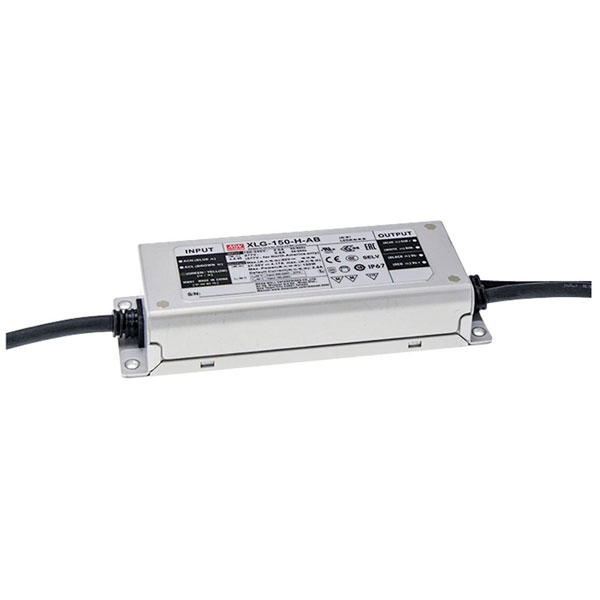

The Mean Well XLG-150-L-AB is an LED driver with a constant power of 150 W, supporting current adjustments between 350 - 1050 mA and a voltage range of 120 - 214 V DC. It includes a 3-in-1 dimmer, surge protection, and overvoltage features, making it dimmable and adjustable for various applications. Approved for use on furniture, suitable for outdoor environments, and can be installed on flammable surfaces, it
Type LED driver
Connection Open end cable
Dim (L x W x H) 180 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 180mm
Max. output current 1050mA
Max. power 150W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 1.05A
Output current (min.) 350mA
Output voltage (max.) 214V DC
Output voltage (min.) 120V DC
Power range 150 W (max)
Test mark CE, CB, MM, ENEC, UL
Width 63mm
