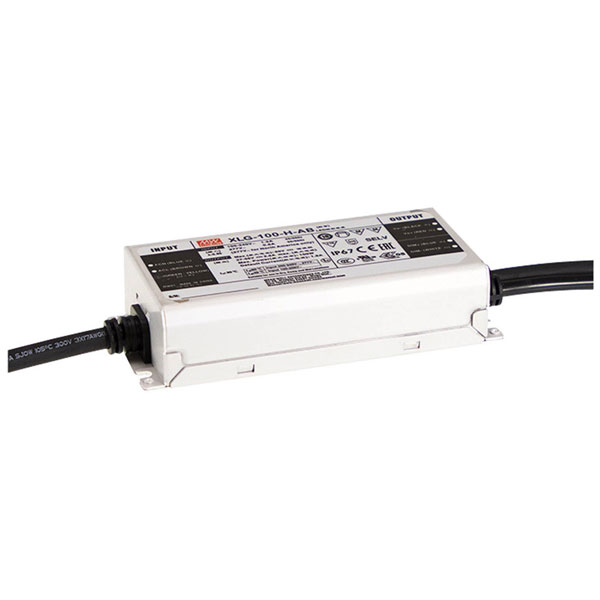

Mean Well XLG-100-24-A LED driver 96W 24V DC outdoor surge protection

The Mean Well XLG-100-24-A is an LED driver designed for both constant voltage and constant current applications, providing 96 watts at 24 volts DC and 2 - 4 amps. It includes features like power factor correction, surge protection, and over-voltage protection, making it ideal for outdoor use and installation on flammable surfaces. This product is commonly used for LED lighting systems on furniture and similar applications where robust power supply is necessary.

Type	LED driver
Output Voltage	24V DC
Max Output Power	96W
Output Current	2A
Colour	Metal
Connection	Open end cable
Dimensions	(L x W x H) 140 x 63 x 32 mm
Height	32mm
IP Rating	IP67
Length	140mm
Max. output current	4A
Max. temperature	+90°C
Min. temperature	-40°C
Misc Attribute	Pulsed
Number of Inputs	1
Number of Outputs	1
Protection Class	I
Test mark	CE, CB, MM, ENEC, UL, SELV
Width	63mm
