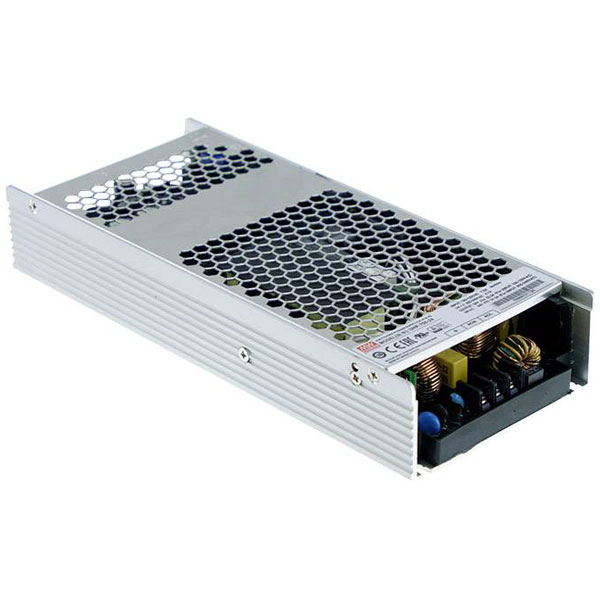

Mean Well UHP-750-24 UHP SMPSU 24V 31.3A 751.2W 96% efficient up to 70°C

Mean Well
Order Code:

05-1902

Brand: Mean Well MPN: UHP-750-24 EAN-13: 4021087051781
Qty Unit Price (Ex VAT)
1+ £241.12
5+ £227.86
10+ £217.01
25+ £204.95
50+ £198.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well UHP-750-24 is a switch mode power supply unit delivering a steady 24 V DC at 31.3 A, ensuring reliable performance for high-demand applications. This PCB mount power supply features screw terminals for secure connections and effective installation. It is typically used in industrial automation, electronic equipment, and telecommunications systems.
Connection Screw terminal
Dim (L x W x H) 237 x 100 x 41 mm
Height 41mm
Length 237mm
Max. output current 31.3A
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
MTBF 2799700h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 31.3A
Output voltage (max.) 24V DC
PFC Yes
Power 751.2W
PSU features Adjustable voltage output
Type SMPSU
Width 100mm
