Mean Well UHP-750-12 UHP SMPSU 12V DC 60A 720W 96% efficient -30°C to 70°C

Mean Well
Order Code:

05-1901

Brand: Mean Well MPN: UHP-750-12 EAN-13: 4021087051798
Qty Unit Price (Ex VAT)
1+ £210.28
5+ £203.97
10+ £197.68
25+ £191.36
50+ £185.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

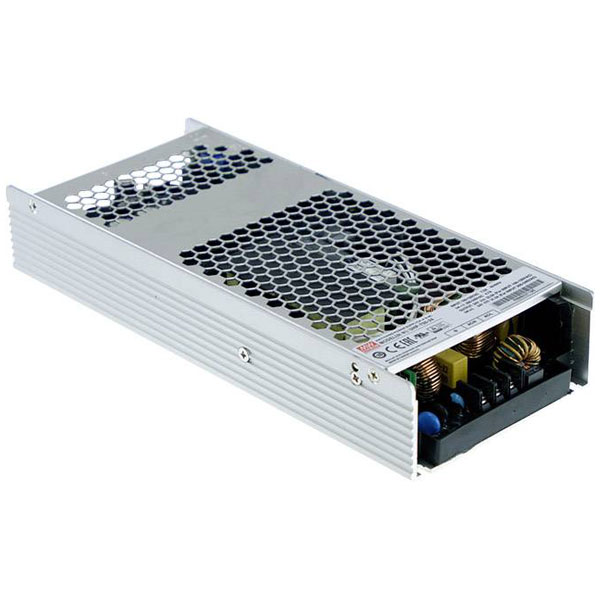

The Mean Well UHP-750-12 is a printed circuit board power supply unit providing 12 V DC with a current rating of 60 A and a total power output of 720 W. This switch-mode power supply unit (SMPSU) features a screw terminal design and is suitable for PCB mounting. It is commonly used in applications requiring reliable, high-power output such as industrial equipment and automation systems.
Connection Screw terminal
Dim (L x W x H) 237 x 100 x 41 mm
Height 41mm
Length 237mm
Max. output current 60A
Misc Attribute 2 closed
Misc Attribute 3 Pulsed
MTBF 2799700h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 60A
Output voltage (max.) 12V DC
PFC Yes
Power 720W
PSU features Adjustable voltage output
Type SMPSU
Width 100mm
