Mean Well UHP-500-15 SMPSU 15.8V DC 33.4A 501W Power Supply

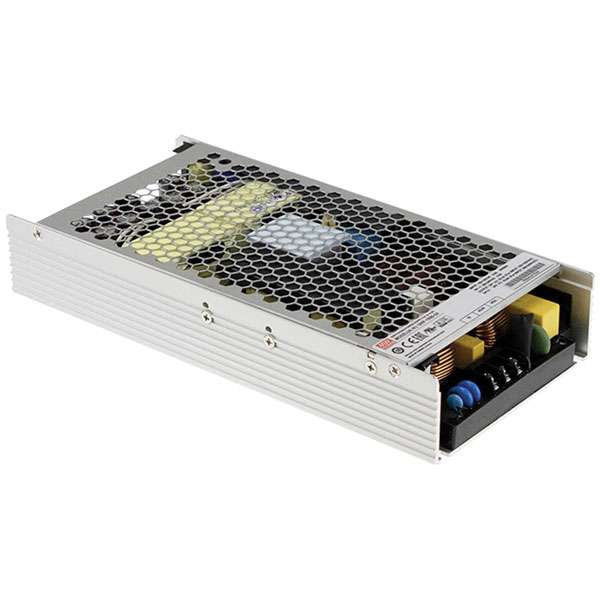

Image Representative of Range

Mean Well UHP-500-15 SMPSU 15.8V DC 33.4A 501W Power Supply

Mean Well
Standard range
Order Code:

05-1895

Brand: Mean Well MPN: UHP-500-15
Qty Unit Price (Ex VAT)
1+ £112.93
5+ £109.55
10+ £106.16
25+ £101.65
50+ £98.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Mean Well UHP-500-15 is a switch-mode power supply unit with a DC output of 15.8 V and a current rating of 33.4 A. It features screw terminals for easy PCB mounting and is suitable for applications requiring high-efficiency power delivery. Typical uses include industrial automation, telecommunications, and LED lighting systems.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 232 x 81 x 31 mm
Height 31mm
Length 232mm
Max. output current 33.4A
Misc Attribute 1 UHP-500-15
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
MTBF 168000h
No. of outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 33.4A
Output voltage (max.) 15.8V DC
Output voltage (min.) 14.3V DC
PFC Yes
Power 501W
PSU features Adjustable voltage output
Weight 905g
Width 81mm
