Mean Well UHP-200R-12 UHP series SMPSU 12.6V DC 16.7A 200.4W

Mean Well
Order Code:

05-1888

Brand: Mean Well MPN: UHP-200R-12 EAN-13: 4021087040631
Qty Unit Price (Ex VAT)
1+ £63.98
5+ £62.07
10+ £60.15
25+ £57.59
50+ £55.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

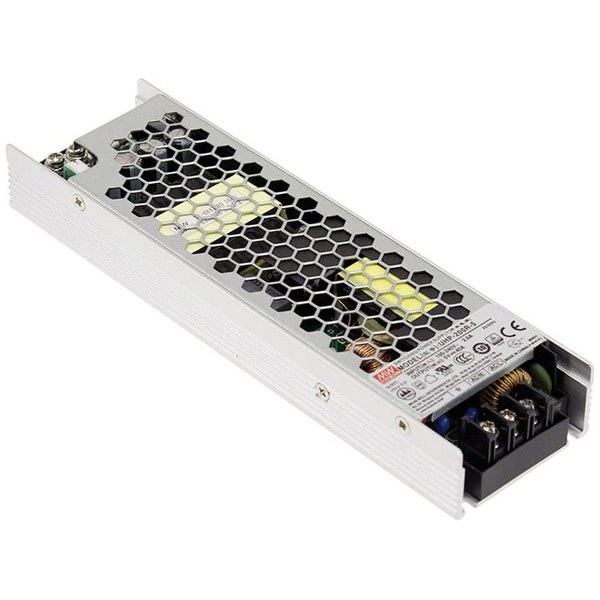

The Mean Well UHP-200R-12 is a 200.4 W switch-mode power supply unit (SMPSU) delivering 12.6 V DC and 16.7 A. It is designed for PCB mounting with screw terminals, typically used in industrial electronics or automated systems. This robust unit is ideal for applications requiring efficient and reliable DC power delivery.
Connection Screw terminal
Dim (L x W x H) 194 x 55 x 26 mm
Height 26mm
Length 194mm
Max. output current 16.7A
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
MTBF 257000h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 16.7A
Output voltage (max.) 12.6V DC
Output voltage (min.) 11.4V DC
PFC Yes
Power 200.4W
PSU features Adjustable voltage output
Type SMPSU
Width 55mm
