Mean Well SKMW20G-05 DC/DC converter 4A 20W single-output 1pc

Mean Well
Standard range
Order Code:

05-1770

Brand: Mean Well MPN: SKMW20G-05
Qty Unit Price (Ex VAT)
1+ £32.46
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

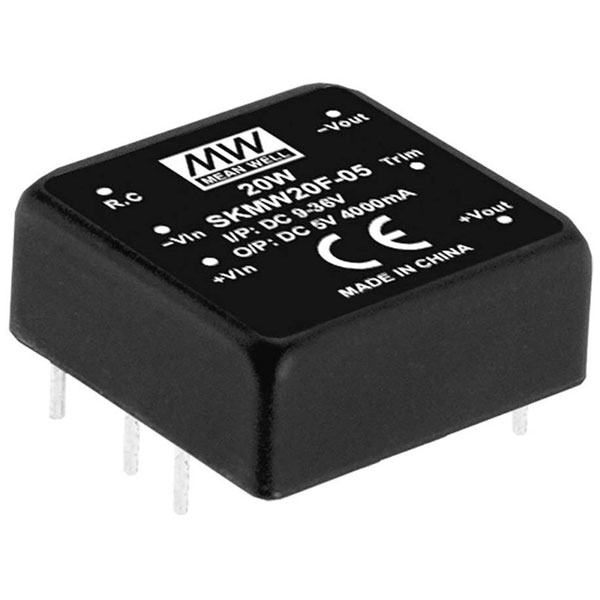

The Mean Well SKMW20G-05 is a direct current converter with a maximum output of 20 watts and a current rating of 4 amperes. It features a single output configuration, making it suitable for applications requiring efficient DC/DC conversion. Ideal for use in electronic systems requiring stable power conversion, this component can be integrated into various industrial and commercial devices.
Type DC/DC converter
Connection Pins
Dim (L x W x H) 25.4 x 25.4 x 10.2 mm
Efficiency (max.) 87%
Height 10.2mm
Input voltage (max.) 75V DC
Insulation voltage 1500V DC
Length 25.4mm
Max. output current 4A
Min. input voltage 18V DC
Misc Attribute SKMW20G-05
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 4A
Output voltage (max.) 5V DC
Power 20W
PSU features DC-to-DC converter
RoHS-compliant Yes
Weight 18g
Width 25.4mm
