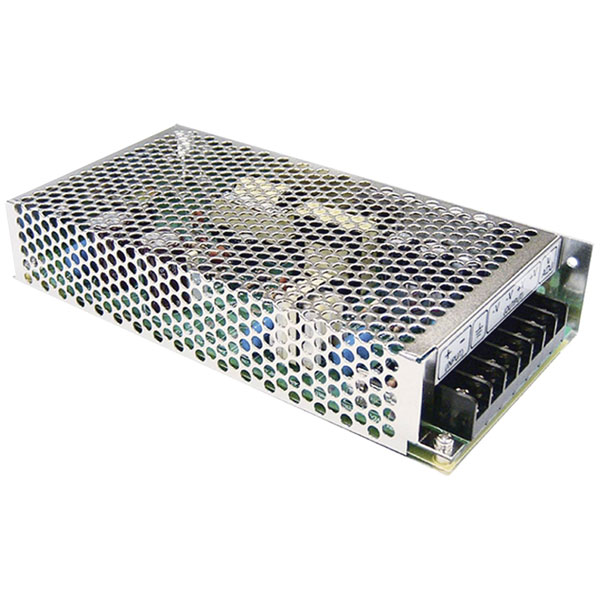

Mean Well SD-500L-12 DC/DC converter 480W 1 output enclosed fan cooled

Image Representative of Range

Mean Well SD-500L-12 DC/DC converter 480W 1 output enclosed fan cooled

Mean Well
Order Code:

05-1691

Brand: Mean Well MPN: SD-500L-12 EAN-13: 4021087001984
Qty Unit Price (Ex VAT)
1+ £178.97
5+ £174.48
10+ £170.02
25+ £165.54
50+ £152.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

The Mean Well SD-500L-12 is a DC/DC converter with a 480-watt output and one output channel. It utilises a screw terminal connection for secure installation and operation. This converter is typically used in industrial applications requiring reliable power conversion from one DC voltage to another.
Connection Screw terminal
Dim (L x W x H) 215.00 x 115.00 x 50.00 mm
Height 50.00mm
Input voltage (max.) 72V DC
Length 215.00mm
Min. input voltage 19V DC
Misc Attribute 1 Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (details) 40 A
Output voltage (max.) 12V DC
Power 480W
Type DC/DC converter
Width 115.00mm
