Mean Well RSP-320-2.5 SMPSU 2.5V DC 60A 150W efficient power supply

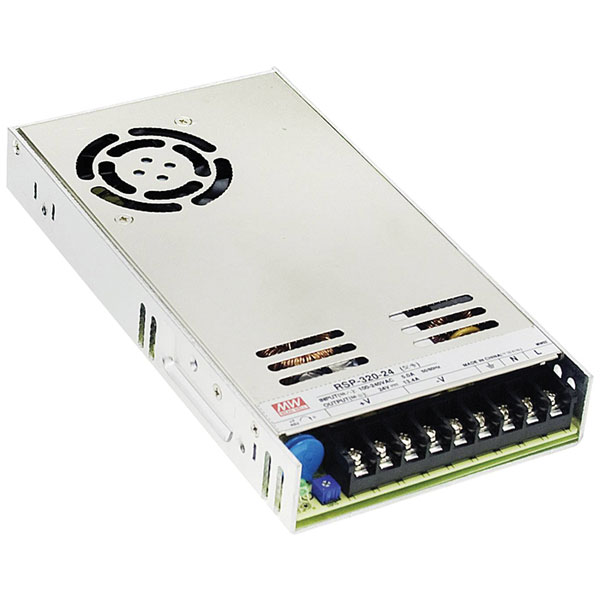

Image Representative of Range

Mean Well RSP-320-2.5 SMPSU 2.5V DC 60A 150W efficient power supply

Mean Well
Standard range
Order Code:

05-1598

Brand: Mean Well MPN: RSP-320-2.5
Qty Unit Price (Ex VAT)
1+ £53.43
5+ £51.82
10+ £50.23
25+ £48.62
50+ £47.02
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Mean Well RSP-320-2.5 is a switch-mode power supply unit (SMPSU) designed for printed circuit board mounting. It delivers a stable output of 2.5 V DC with a current rating of 60 A, providing 150 W of power. Ideal for applications requiring a compact and efficient power solution, it features solder lugs and screw terminals for secure connections.
Type SMPSU
Connection Screw terminal
Dim (L x W x H) 215 x 115 x 30 mm
Height 30mm
Length 215mm
Max. output current 60A
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 1 RSP-320-2.5
Misc Attribute 2 closed
Misc Attribute 3 Pulsed
MTBF 206500h
No. of outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 60A
Output voltage (max.) 2.5V DC
PFC Yes
Power 150W
PSU features Adjustable voltage output
Weight 900g
Width 115mm
