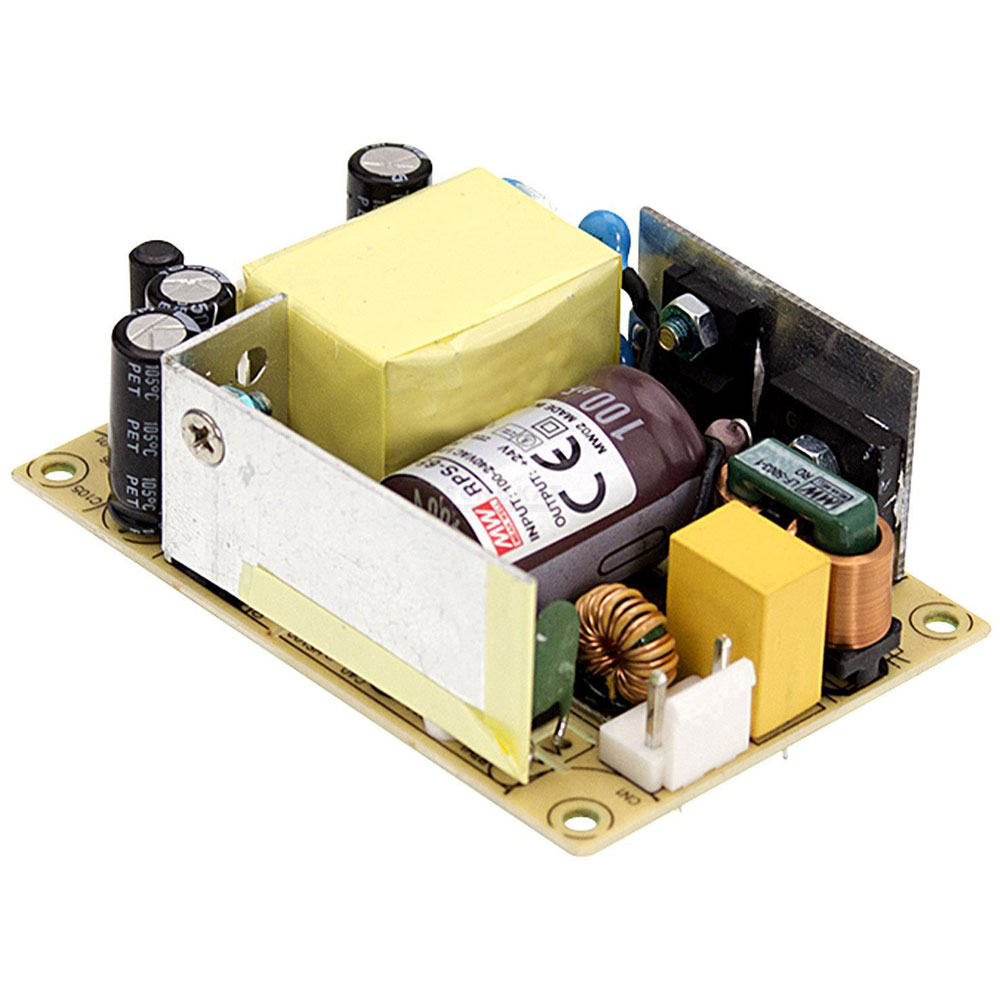

Mean Well RPS-45-12 SMPSU 12V DC 4.18A 45.6W 1 pc

The Mean Well RPS-45-12 is a switched-mode power supply unit (SMPSU) offering a 12 V DC output with a current rating of 4.18 A, delivering a total power of 45.6 W. It is designed for printed circuit board (PCB) mounting, equipped with solder lugs, and ideal for applications requiring reliable and efficient power conversion. Typical applications include powering small electronic devices, embedded systems, and various circuit board PSUs in commercial and industrial

Type	SMPSU
Nominal value output current 1	4.18A
Number of Outputs	1
Power Rating	45.6W
Depth	76.2mm
Dimensions (L x W x H)	76.2 x 50.8 x 24mm
Height	24mm
Max. output current 1	4.18A
Maximum input voltage [AC]	264V
Maximum Temperature	+70°C
Min. temperature	-30°C
Minimum Input Voltage [AC]	80V
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	726200h
Nominal value output voltage 1 [DC]	12V
Number of Inputs	1
PFC	No
PSU features	Adjustable voltage output
Type of electric connection	Pin strip for nylon crimp connectors
Weight	110g
Width	50.8mm
