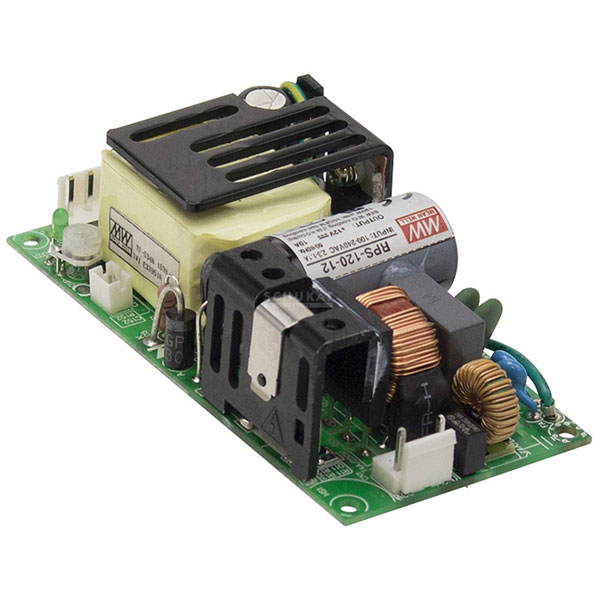

Mean Well RPS-120-12 SMPSU 12V DC 10A 120W Efficient Power Supply

Mean Well's RPS-120-12 is a 12 V DC switch mode power supply unit with a power output of 120 W and a current rating of 10 A, ideal for PCB mounting. It features solder lugs and pin strips for nylon crimp connectors, making it suitable for direct integration onto printed circuit boards. This power supply unit is commonly used in industrial automation, telecommunications, and electronic instrumentation applications.

Type	SMPSU
Nominal value output current 1	10A
Number of Outputs	1
Power Rating	120W
Depth	101.6mm
Dimensions (L x W x H)	101.6 x 50.8 x 29mm
Height	29mm
Max. output current 1	10A
Maximum Temperature	+70°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	653500h
Nominal value output voltage 1 [DC]	12V
Number of Inputs	1
PFC	No
Type of electric connection	Pin strip for nylon crimp connectors
Weight	150g
Width	50.8mm
