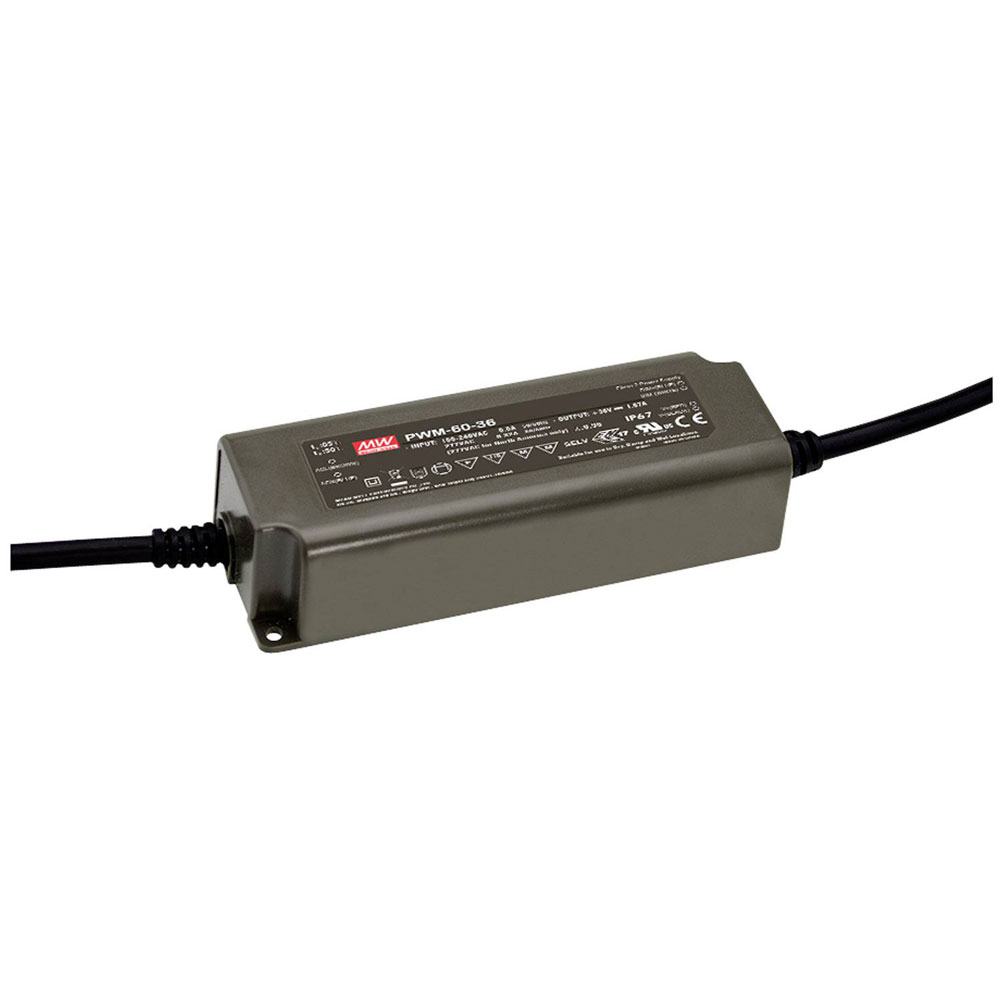

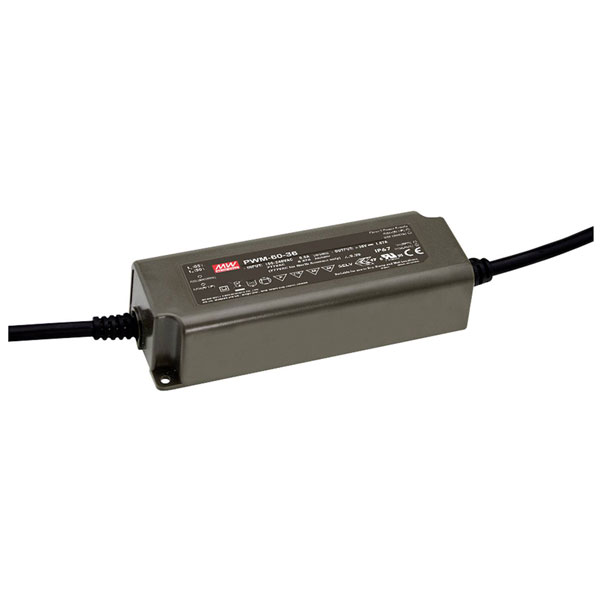

Mean Well PWM-60-24DA PWM-60 LED driver 60W 24V dimmable IP67 outdoor use

The Mean Well PWM-60-24DA is a dimmable LED driver with a constant voltage output of 24 V DC and a power capacity of 60 W, providing 2.5 A of current. This driver is suitable for mounting on flammable surfaces and approved for use on furniture, with added outdoor functionality and surge protection features. It supports 3-in-1 dimming via a built-in DALI interface, making it ideal for powering LED strips in residential and commercial lighting applications

Type	LED driver
Connection	Open end cable
Dim	(L x W x H) 150 x 53 x 35 mm
Factory colour	Anthracite
Height	35mm
IP Rating	IP67
Length	150mm
Max. output current	2.5A
Max. power	60W
Max. temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Constant voltage
Misc Attribute 2	Synchronised
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	2.5A
Output voltage (max.)	24V DC
Power range	60 W (max)
Protection Class	II
Test mark	CE, CB, UL, SELV, ENEC, MM
Width	53mm
