Mean Well PWM-120-12BLE LED driver 120W 12V DC 10A dimmable outdoor

Image Representative of Range

Mean Well PWM-120-12BLE LED driver 120W 12V DC 10A dimmable outdoor

Mean Well
Order Code:

05-1380

Brand: Mean Well MPN: PWM-120-12BLE EAN-13: 4021087070317
Qty Unit Price (Ex VAT)
1+ £94.10
10+ £84.69
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

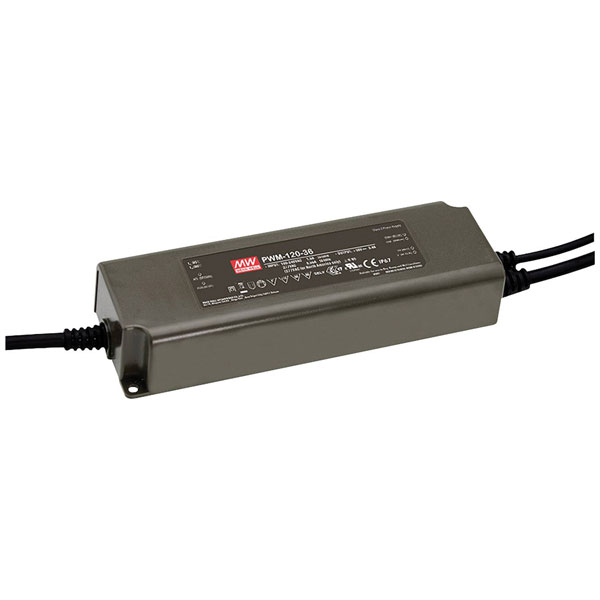

The Mean Well PWM-120-12BLE is a LED driver providing constant voltage output at 120 W, 10 A, and 12 V DC. It is suitable for outdoor use and can be placed on flammable surfaces and approved for use on furniture. Key features include dimmable functionality, a PFC circuit, surge protection, and an overvoltage design, making it ideal for powering LED strips and other lighting applications.
Type LED driver
Connection Open end cable
Dim (L x W x H) 191 x 63 x 37.5 mm
Factory colour Anthracite/black
Height 37.5mm
IP Rating IP67
Length 191mm
Max. output current 10A
Max. power 120W
Max. temperature +90°C
Min. temperature -25°C
Misc Attribute Constant voltage
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 10A
Output voltage (max.) 12V DC
Power range 120 W (max)
Protection Class II
Test mark CE · MM · SELV
Width 63mm
